Spiral Mixer

Spiroforce Spiral Mixer


free shipping
Free shipping for Online Orders over $150 + gst*
delivery estimate
Click here to contact us for delivery time

Product Description

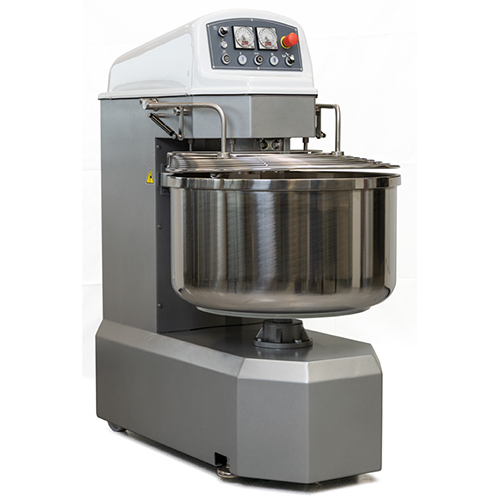

Reinforced transmission spiral mixers with fixed bowl from 60 to 250 kg dough capacity

Spiroforce spiral mixers are designed to withstand the demands of high production bakeries. The structure is fabricated from heavy gauge steel and 2 pack painted for high wear resistance.

The mixers are fitted with an electronic control panel which provides options for slow speed mixing in forward or reverse direction, high speed mixing in forward direction, and incorporates a bowl jog feature to allow easy removal of dough. The wire grid guard is designed for complete operator safety, but still allows easy visibility of the dough while mixing.

Product features

  • Fitted with two motors
  • Two speeds on spiral tool
  • Easy dough extraction thanks to the bowl jog push-button
  • Sturdy body in painted steel
  • Stainless steel bowl, spiral tool and breaking column
  • Fitted with double spiral transmission, breaking column without
  • foot and reinforced spiral motor for stiffer dough mixtures
  • Control panel with two electromechanical timers
  • Bowl cover in wire grid style with gas struts.
  • Suitable for dough mixtures with a hydration greater than 45%

Technical Specifications

Model SFR60

  • Dough capacity 4kg - 60kg
  • Flour capacity 36kg
  • Bowl volume 117 litres
  • Dimensions
    • Width 698mm
    • Depth 1126mm
    • Height 1385mm
  • Spiral Motor 2.06kw / 4.8kW
  • Bowl Motor 0.55kW

Model SFR80

  • Dough capacity 5kg - 80kg
  • Flour capacity 50kg
  • Bowl volume 131 litres
  • Dimensions
    • Width 698mm
    • Depth 1126mm
    • Height 1385mm
  • Spiral Motor 2.06kw / 5.2kW
  • Bowl Motor 0.55kW

Model SFR120

  • Dough capacity 8kg - 120kg
  • Flour capacity 75kg
  • Bowl volume 188 litres
  • Dimensions
    • Width 779mm
    • Depth 1151mm
    • Height 1502mm
  • Spiral Motor 3.7kw / 6.2kW
  • Bowl Motor 0.55kW

Model SFR160

  • Dough capacity 10kg - 160kg
  • Flour capacity 100kg
  • Bowl volume 266litres
  • Dimensions
    • Width 879mm
    • Depth 1497mm
    • Height 1582mm
  • Spiral Motor 6kw / 10kW
  • Bowl Motor 0.75kW

Model SFR200

  • Dough capacity 10kg - 200kg
  • Flour capacity 125kg
  • Bowl volume 306 litres
  • Dimensions
    • Width 940mm
    • Depth 1552mm
    • Height 1582mm
  • Spiral Motor 6kw / 12kW
  • Bowl Motor 0.75kW

Model SFR250

  • Dough capacity 12kg - 250kg
  • Flour capacity 36kg
  • Bowl volume 378 litres
  • Dimensions
    • Width 1035mm
    • Depth 1650mm
    • Height 1612mm
  • Spiral Motor 6kw / 12kW
  • Bowl Motor 1.0kW
