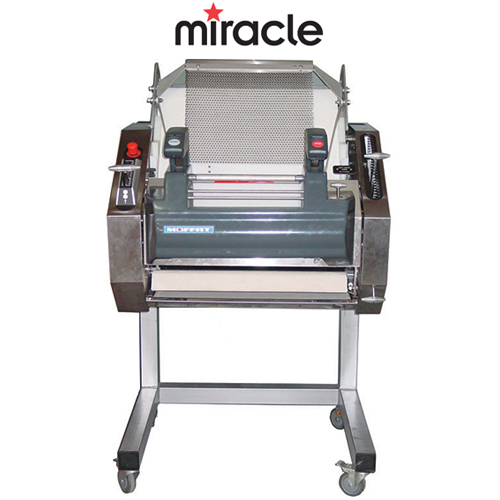

Miracle VM404 Bread Moulder

Features

• Four piecing fitted as standard
• Emergency stop button
• Derpanyl composite non-stick moulding belts
• Light speed operator protection system
• Recommended weight range 35-900gms
• Maximum output 900 loaves / 1800 rolls per hour
• Light beam safety guard
• Standard with green start and red stop buttons
• Easy setting selection
• Small footprint
• Supplied on castors

• Machine Range/Output
  • Maximum moulding width 300mm
  • Recommended weight range 30 - 1200 grams
• Overall Construction
  • Galvanised steel main body, stainless steel finish
  • Sheeting rollers non stick PVC material
  • Fibreglass mouldings

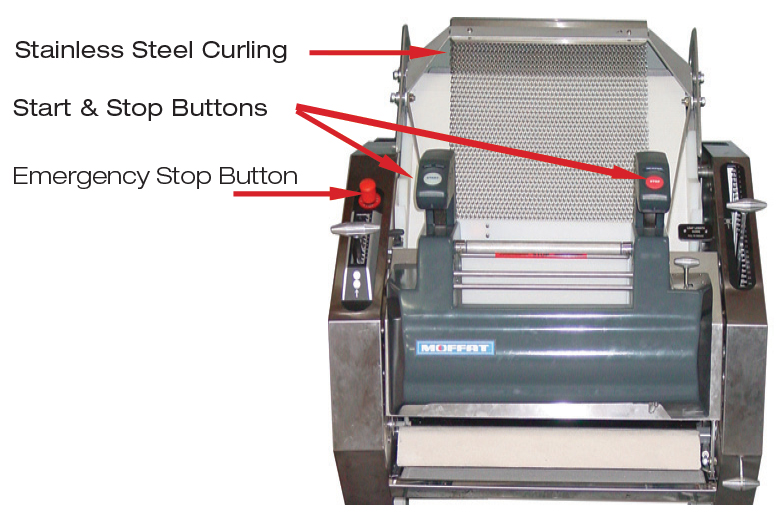

  • Curling chain stainless steel construction (removable for cleaning)
• Operation
  • Four piecing blades activated by front lever
  • Fixed loaf guides
  • Fully adjustable sheeting roller settings (front mounted)
  • Operation & emergency stop buttons

Specifications

• Dimensions
  • Width: 635mm
  • Depth: 950mm
  • Height: 1610mm
• Nett weight: 300kg
• Electrical Requirements:
  • 400-415V, 3P+N+E, 50Hz, 1.0kW
  • 4 pin 10 amp plug supplied
