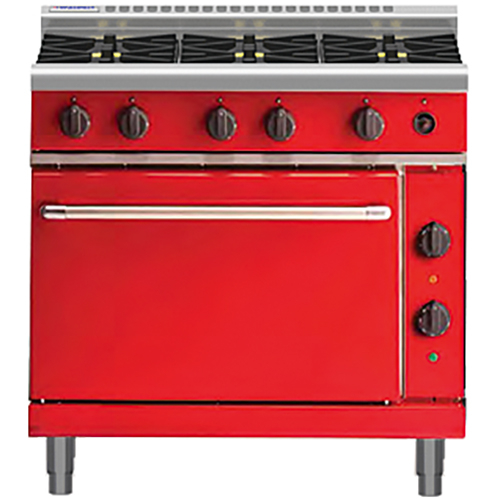

Waldorf Red RNLB8610GE Gas Range with Electric Static Oven
Product Description
Waldorf Bold delivers a new aesthetic approach enhancing the Waldorf 800 Series’ widely appreciated speed, power and efficiency. If your kitchen needs to attract and enthral as well as perform - why not make a bold choice?
Moffat has changed the rules of heavy-duty kitchen design forever - with the remarkable new Waldorf Bold range. Designed for innovative chefs who want their kitchen to look the part, the Waldorf Bold range is available in three striking vitreous enamel colours; black, burgundy and chilli red - an impervious surface applied to all non-functioning pieces.
Bold is a transformation of the 800 Series, with the same specifications and all the performance you have come to expect but with a sleek, new aesthetic twist. The Waldorf Bold vitreous enamel colour coating is available in the following product lines: Bench Tops, Chargrills, Commercial Cooktops, Deep Fryers, Griddles, Griddle Toasters, Induction Cooktops, Ovens, Oven Ranges, Pasta Cookers, Salamanders and Target Tops.
Southern Hospitality Ltd recommends that customers who wish to purchase items such as this consult with one of our friendly sales reps, to iron out all of the fine detail that can accompany such purchases, and ensure that you receive the correct model and specifications for your particular needs.
If you would like to view this product, please contact us at 0800 503 335 or [email protected].
Waldorf Bold RNLB8610GE - 900mm Gas Range Electric Static Oven Low Back Version
- 6 burner cooktop range
- 2/1 GN electric static oven
- 6 x 28MJ/hr open burners
- Heavy-duty stainless steel finish
- Flame failure protection on all burners
- Removable heavy-duty cast iron burners and vitreous enamel pot stands
- Heavy-duty reinforced control knobs
- Heavy-duty construction
- Drop down door with welded frame
- Oven lining is welded and lined with vitreous enamel
- Cool touch stainless steel door handle
- Adjustable feet and 2 additional rollers
- Easy clean, installation and service
- Optional simmer plates
Features
- Overall Construction
- Galvanized steel chassis
- Welded hob surround with 1.5mm 304 stainless steel bull nose
- Splashback and hob sides 1.2mm 304 stainless steel
- Front panels and oven sides 0.9mm 304 stainless steel
- 150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel with adjustable feet
- Cooktop
- Cast iron 28MJ/hr open burners with forged brass cap
- Vitreous enamelled cast iron potstands
- Vitreous enamelled open burner spill covers
- Cast iron simmer plates (optional extra)
- 12mm thick mild steel griddle plates
- 2.5mm 304 stainless steel griddle splash guards
- Vitreous enamelled spill trays
- Aluminised steel internal construction
- Oven
- Fully welded and vitreous enamelled oven liner
- GN 2/1 capacity with 4 position racking
- Heavy-duty easy remove heavy wire chrome rack supports
- Cast iron even heat oven sole plate
- 6.5kW heating elements
- Welded frame drop down door with heavy-duty spring hinge system
- 0.9mm 304 stainless steel door outer
- 1.0mm press formed vitreous enamelled door inner
- 50mm high density fibreglass insulated
- Stay cool stainless steel door handle with cast metal handle mounts
- Supplied with two chrome wire oven racks
- Controls
- Large easy use control knobs - heat resistant reinforced
- Easy view control settings on knobs
- Cooktop
- Variable high to low controls to open burners
- Open burners flame failure standard with pilot burners optional
- Variable high to low controls to griddles
- Griddles standard with pilot, flame failure and piezo ignition
- Oven
- Separate temperature and top heat power regulation controls
- 50-320˚C thermostatic control
- Lo-Hi top heat control
- Indicator lights for power and heating
- Cleaning and Servicing
- All models with easy clean stainless steel external finish
- Lift off burners heads and vitreous enamelled burner spill covers
- Vitreous enamelled spill trays under open burner and griddle sections
- Removable oven racking and sole plate
- Easy clean vitreous enamel oven and door inner
- Door hinge spring adjustable on unit (door outer removed)
- Door disengages for lift off removal and increased service access
- All parts front accessible from installed position
- Access to all parts from front of unit
Specifications
- Burners: 28MJ/hr dual flame ring with simmer rate
- Oven Elements
- 4.5kW bottom heat element
- 2.0kW top heat element
- Gas power: 168 MJ/hr, 46.6kW
- Electrical requirements: 6.5kW
- 1 phase connection:
- 230-240Vac, 50/60hz, 1P+N+E, 27A
- 3 phase connection:
- 400-415Vac, 50/60hz, 3P+N+E
- L 1 9.4A
- L2 9.4A
- L3 8.3A
- Oven Dimensions
- Width 665mm
- Depth 590mm
- Height 385mm
- Rack size 660mm x 540mm
- Rack positions 4
- Gas connection
- R 3/4 (BSP) male
- 130mm from RH side, 32mm from rear, and 655mm from floor
- All units supplied with Natural and LP gas regulator
- Electrical connection
- 23mm from RH side, 484mm from rear, and 150mm from floor
- Dimensions
- Width 900mm
- Depth 805mm
- Height 915mm
- Incl. splashback 1130mm
- Incl. low back 970mm
