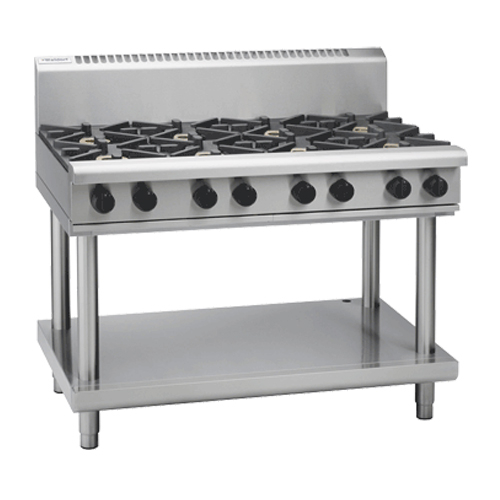

Waldorf 800 Series RN8800G-LS - 1200mm Gas Cooktop Leg Stand
EMW43

was $6,440.00

$4,636.80 plus GST

Availability: In stock

Click here to contact us for delivery time

The Waldorf range now offers two defining series with two distinct differences; the Waldorf 800 series continues the tradition of bulletproof performance and dependability with a range of European inspired equipment that re-defines how the ultimate kitchen should be.

Waldorf 900mm target tops are available as stand-alone hobs, or with a choice of four base units - cabinet base, leg stand, refrigeration base, or oven base (static/convection, gas/electric). Featuring a high output, dual ring cast iron burner, the super heavy-duty target top casting provides outstanding heat recovery and heat control. Outstanding thermal efficiency is achieved by way of a burner box lined with 50mm refractory ceramic blocks.

Southern Hospitality Ltd recommends that customers who wish to purchase items such as this consult with one of our friendly sales reps, to iron out all of the fine detail that can accompany such purchases, and ensure that you receive the correct model and specifications for your particular needs.

If you would like to view this targettop, please contact us at 0800 503 335 or weborders@southernhospitality.co.nz.

Waldorf 800 Series RN8800G-LS - 1200mm Gas Cooktop Leg Stand Model - Product Features

  • 8 burner cooktop on leg stand
  • 8 x 28MJ/hr open burners
  • Heavy-duty construction
  • Heavy-duty stainless steel finish
  • Flame failure standard
  • Pilot burners optional
  • Flame failure protection on all burners
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands
  • Heavy-duty reinforced control knobs
  • Adjustable feet and 2 additional rollers
  • Easy clean, installation and service

FEATURES

  • Cooktop
    • Welded hob with 1.5mm 304 stainless steel bull nose
    • Splashback and side panels 1.2mm 304 stainless steel
    • Front panels 0.9mm 304 stainless steel
    • Aluminised steel internal construction
    • Cast iron 28MJ/hr open burners with forged brass cap
    • Vitreous enamelled cast iron potstands
    • Vitreous enamelled open burner spill covers
    • Cast iron simmer plates (optional extra)
    • 12mm thick mild steel griddle plate
    • 2.5mm 304 stainless steel griddle splash guards
    • Vitreous enamelled spill trays
    • Griddle sections are standard on RH side. Available on LH side to order or by conversion.
  • Leg Stand
    • Fully modular for matched suite finish
    • Framed top for connection to Cooktop
    • 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
    • Fully modular framed stand shelf with 0.9mm 304 stainless steel finish
    • Shelf to top stainless steel backstop panel for convenience and rigidity
    • Suitable for rear or through shelf gas connection to Cooktop
    • Quick assembly design (no tools required)
  • Controls
    • Variable high to low controls to open burners
    • Open burners flame failure standard with pilot burners optional
    • Variable high to low controls to griddles
    • Griddles standard with pilot, flame failure and piezo ignition
    • Large easy use control knob - heat resistant reinforced
    • Easy view control settings on knob
  • Cleaning and Servicing
    • All models with easy clean stainless steel external finish
    • Lift off burners heads and vitreous enamelled burner spill covers
    • Vitreous enamelled spill trays under open burner and griddle sections
    • Access to all parts from front of unit

Specifications

  • Burners: 28MJ/hr dual flame ring with simmer rate
  • Gas power: 224 MJ/hr, 62.2kW
  • Gas connection
    • R 3/4 (BSP) male
    • 130mm from RH side, 32mm from rear, and 655mm from floor
    • All units supplied with Natural and LP gas regulator
  • Dimensions
    • Width 1200mm
    • Depth 805mm
    • Height 915mm
    • Incl. splashback 1130mm
    • Incl. low back 970mm
  • Gas types
    • Available in Natural gas and LP gas
    • Please specify when ordering
    • Units supplied complete with gas type conversion kits
    • Other gas types on request
