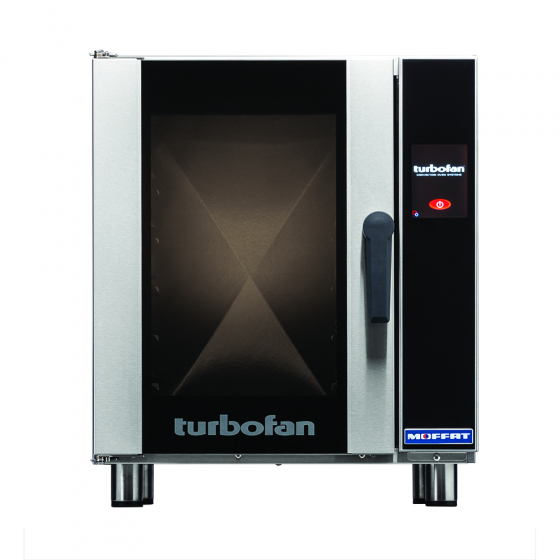

Turbofan E33T5 Touch Screen Convection Oven

Introducing the Turbofan E33T5 Touch Screen Convection Oven - the perfect addition to your commercial kitchen! With a 5 1/1 GN Gastronorm tray capacity and a compact 610mm width, this oven is ideal for any busy kitchen. The 85mm tray spacing ensures efficient cooking and the Touch Screen control offers easy-to-use programming with up to 5 cooking stages.

The icon-driven program menu allows for quick and easy programming, and the USB port allows for program/icon updates. The Moisture Injection mode (5 levels) and 2-speed bi-directional reversing fan system ensure that your dishes come out perfect every time. The oven chamber is constructed with vitreous enamel and the exterior is made of stainless steel.

The touch screen control and individual shelf timers make operation simple, and the 5.7” LED-backlit touch screen is easy to read. The pendulum operation door handle and Safe-Touch vented side hinged door with slam-shut door latch makes opening and closing the oven effortless. The oven also features dual halogen lamps, 100% recyclable packaging, and 76mm high adjustable stainless steel feet.

Cleaning is made easy with the stainless steel top and side exterior panels, vitreous enamel oven chamber, fully removable stainless steel oven side racks, removable stainless steel oven fan baffle, and easy clean door system. The removable plug-in oven door seal makes cleaning even easier.

Features

• 5 1/1 GN Gastronorm tray capacity
• 85mm tray spacing
• Compact 610mm width
• Touch Screen control
• Program and Manual modes
• Icon-driven program menu
• Up to 5 cooking stages
• Individual shelf timers
• USB port for program/icon updating
• Moisture Injection mode (5 levels)
• 2-speed bi-directional reversing fan system
• 5.8kW heating power
• Safe-Touch vented side hinged door
• Slam shut the door latch
• Pendulum operation door handle
• Vitreous enamel oven chamber
• Plug-in continuous oven door seal
• Dual halogen oven lamps
• Anti-skid 50mm dia. 76mm high adjustable stainless steel feet
• 100% recyclable packaging

Construction

• Vitreous enamel fully welded oven chamber
• Stainless steel front, sides and top exterior
• Stainless steel oven fan baffle and oven vent
• Removable 5-position stainless steel side racks
• Stainless steel frame side hinged door
• 5mm thick door outer glass
• 5mm thick low energy loss door inner glass
• Stainless steel control panel
• Aluminised coated steel base and rear panels

Controls

• 5.7” LED-backlit touchscreen
• Icon-driven program menu
• BMP image icon imports via USB port
• Program updates via USB port
• Temperature range 30-260°C
• Adjustable sounder tones and volume
• Other specifications on request
• Safety thermostat cut-out
• Optional core temp probe

Cleaning

• Stainless steel top and side exterior panels
• Vitreous enamel oven chamber
• Fully removable stainless steel oven side racks
• Removable stainless steel oven fan baffle
• Easy clean door system with hinge out door inner glass (no tools required)
• Removable plug-in oven door seal (no tools required)
• 76mm high stainless steel feet for easy access underside

Specifications

• External Dimensions

  • Width 610mm
  • Height 730mm including 76mm feet
  • Depth 680mm
• Oven Internal Dimensions

  • Width 330mm
  • Height 515mm
  • Depth 570mm
  • Volume 0.10m3
• Oven Rack Dimensions

  • Width 330mm
  • Depth 530mm
• Nett Weight - 71.5kg
• Electrical Requirements

  • 230-240V, 50Hz, 1P+N+E, 6.0kW, 25A
• Water Requirements (optional)
  • Cold water connection ¾” BSP male
