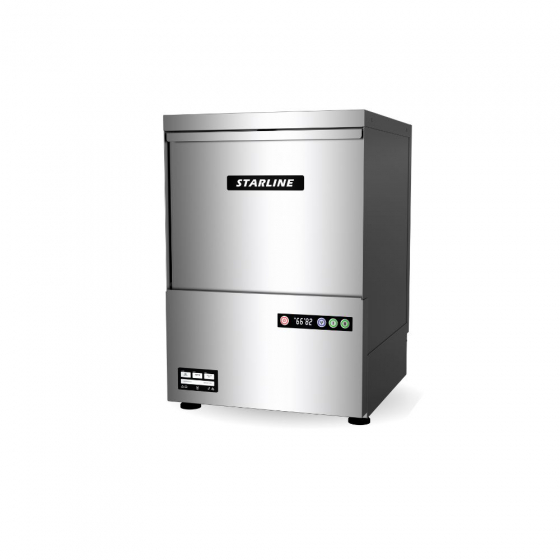

Starline XD Undercounter Dishwasher

The Starline XD Undercounter Dishwasher is a compact, high‑performance solution designed for cafés, bars, and hospitality venues with limited space but demanding wash volumes. Built for speed and efficiency, it delivers powerful cleaning with fast 1 and 2‑minute cycles to keep service moving. Washtech hybrid controls make the machine simple to operate, maintain, and service, even in busy environments. Its oversized wash chamber allows flexibility for dishes and GN pans, making it ideal for diverse kitchen needs. Durable stainless‑steel construction ensures long‑term reliability and hygiene in commercial use.

Features

• Fast Cycle Times: Selectable 1 and 2‑minute cycles for rapid turnaround during peak service periods
• High Wash Capacity: Washes up to 1,080 dishes or 240 GN 1/1 pans per hour for efficient throughput
• Oversized Wash Chamber: Internal dimensions W500 × D560 × H390 mm, suitable for oversized items and GN pans
• Washtech Hybrid Controls: Easy‑to‑use control system designed for simple operation, diagnostics, and servicing
• Efficient Water Usage: Low consumption of just 2.2 litres per cycle to reduce operating costs
• Powerful Wash System: A 0.5 HP wash pump delivers consistent cleaning performance
• Smartpower Detergent System: Integrated mini solid detergent dispenser for accurate and reliable chemical dosing
• Hands-Free Drainage: A built‑in drain pump and flexi‑hose enable hygienic, effortless draining
• Advanced Filtration: A stainless‑steel wash and drain filter protects components and maintains water quality
• Heavy-Duty Construction: Stainless‑steel body and wastebasket for durability, hygiene, and easy cleaning
• Complete Rack Package: Supplied with a 500 mm dish rack, cup rack, and cutlery container
• Quick Installation: Includes a full quick‑connection kit with hoses and a 15A plug set
• Compact Dimensions: 570mm (W) × 660mm (D) × 840mm (H), ideal for undercounter installation
• Electrical Requirements: Single phase 230–240V, 15A, with plug set supplied

Specifications

• Hot Water:
  • Temperature: 65°C
  • Connection: 3/4” male, hose supplied
  • Pressure: 200-350kPa
  • Flow: 20L per minute
  • Backflow prevention: Atmospheric vacuum breaker
  • Consumption: 2.2L per cycle*
• Drainage:
  • Drain pump flexi-hose: 25mm
• Electrical:
  • Single phase: 230-240V, 50Hz, 15 A/ph, 3.37 Max kW
• Dimensions: Machine

  • Width: (mm) 570
  • Depth: (mm) 600
  • Height: (mm) 840
  • Weight: (kg) 54
• Water Quality:
  • pH:  Min-7, Max-8
  • Hardness: Min-20, Max-100
  • Cl-: Max-100
  • SO4: Max-400
  • Fe: Max-0.1
  • Mn: Max-0.5
  • Cu: Max-0.05
  • Cl2: Max-0.1
