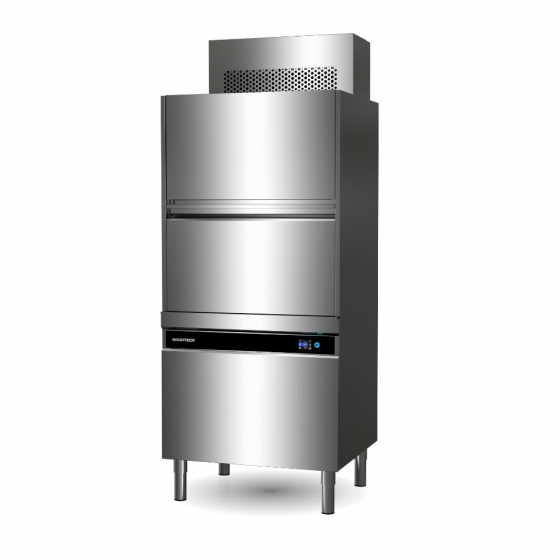

Starline PW1C Frontloading Warewasher with HRC

The Starline PW1C Frontloading Warewasher with HRC is a high-capacity, energy-efficient solution designed for demanding hospitality and institutional kitchens. Featuring an integrated heat recovery unit, it significantly reduces steam emissions and operating costs while eliminating the need for an external extraction canopy. Advanced WashTech electronic touchscreen controls allow full customisation of wash cycles for consistent, high-performance results. The oversized front‑loading wash chamber easily handles bulky items while maintaining smooth workflow. Built with heavy‑duty stainless steel and a powerful wash system, it delivers long‑term reliability in high‑volume environments.

Features

• Integrated Heat Recovery Unit (HRC): Recycles energy from steam to preheat incoming water, reducing energy consumption and steam emissions
• Canopy-Free Operation: No external extraction canopy required*, helping lower installation costs and simplify kitchen design
• Customisable Wash Cycles: Selectable 2, 4, and 6‑minute cycles to suit different soil levels and operational demands
• Advanced Touchscreen Controls: Washtech electronic interface for intuitive operation, diagnostics, and precise cycle control
• Oversized Front-Loading Wash Chamber: Internal capacity of W720 × D600 × H750 mm for large items and high‑volume loads
• Stainless Carriage System: Supplied with a stainless carriage and adjustable upper hanging and tine rail for flexible loading
• High-Power Wash System: 2.0 HP wash pump with a custom hand‑built heavy‑duty stainless‑steel manifold for superior cleaning power
• Independent Wash & Rinse Arms: Stainless‑steel arms engineered for optimal coverage and consistent wash results.
• Assured Rinse Plus System: An integrated rinse pump ensures stable rinse pressure and reliable sanitisation
• Dual Chemical Pumps: Built‑in detergent and rinse aid pumps for accurate, automated chemical dosing
• Advanced Filtration System: Two‑stage stainless‑steel wash and drain filtration to maintain water quality and protect components
• Hands-Free Drainage: An integrated sump and drain pump allow hygienic, effortless draining without manual handling
• Heavy-Duty Construction: Full stainless‑steel body and manifold designed for durability, hygiene, and long service life
• Commercial Dimensions: 860mm (W) × 760mm (D) × 2035mm (H) for efficient back‑of‑house installation
• Power Options: Available in 3-phase / 15A or 3-phase / 25A to suit site electrical requirements

Specifications

• Hot Water: Temperature: 65°C
• Cold Water: Temperature: <25°C
  • Connection: 3/4” male, hose supplied
  • Pressure: 100-350kPa
  • Flow: 10L per minute
  • Backflow prevention: Atmospheric vacuum breaker
  • Consumption: 2.4L per cycle*
• Drainage:
  • Drain pump flexi-hose: 25mm
• Electrical:
  • Three phase: 400-415V, 50Hz, 15 A/ph, 10.50 Max kW
  • Three phase: 400-415V, 50Hz, 25 A/ph, 18.00 Max kW
• Dimensions: Machine

  • Width: (mm) 835
  • Depth: (mm) 780
  • Height: (mm) 2075
  • Weight: (kg) 186
• Water Quality:
  • pH:  Min-7, Max-8
  • TDS (ppm): Min-1, Max-135
  • Hardness: Max-100
  • Cl-: Max-100
  • SO4: Max-400
  • Fe: Max-0.1
  • Cl2: Max-0.1
