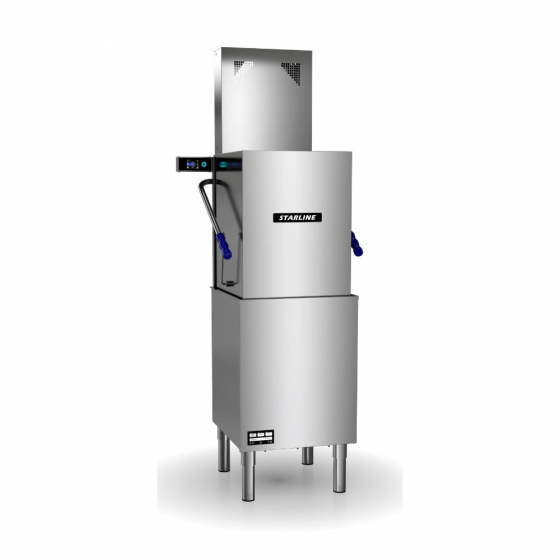

Starline M1C Passthrough Dishwasher

The Starline M1C Passthrough Dishwasher is a high-performance, energy-efficient solution designed for busy commercial kitchens. Featuring an integrated heat recovery unit, it eliminates the need for an external extraction canopy while recycling steam energy to preheat incoming water. With rapid cycle options and advanced touchscreen controls, it delivers powerful cleaning with minimal water usage. Built for durability and ease of use, it’s ideal for hospitality venues seeking sustainable and space-efficient dishwashing solutions.

Features

• Integrated Heat Recovery Unit: Captures and reuses steam energy to heat incoming water and reduce energy cost.
• Fast Wash Cycles: Offers 60, 120, and 180-second cycles, capable of cleaning up to 840 plates per hour.
• Touchscreen Controls: Intuitive interface with a heads-up display for easy monitoring and operation.
• Water-Efficient Design: Uses only 2.4 litres of water per cycle, helping reduce utility expenses.
• Rack Compatibility: Supports 450 mm racks and includes:
  • 2x 450 mm dish racks (600 70081)
  • 1x 450 mm cup rack (600 70080)
  • 1x cutlery container (C660503)
• Compact Fit: Designed for 600 mm–700 mm bench depths, with space-saving installation.
• Powerful Wash System: Equipped with a 1.0 HP soft-start wash pump and dual chemical pumps for thorough cleaning.
• Reliable Rinse Performance: Features an assured rinse system with booster pump for consistent sanitization.
• Hands-Free Drainage: Includes a sump and drain pump for hygienic, automatic water removal.
• Durable Build: Constructed with heavy-duty stainless steel, including independent wash and rinse arms and two-stage filtration for long-term reliability.

Specification

Cold Water

• Temperature: <25°C
• Connection: 3/4” male, hose supplied
• Pressure: 100-500kPa
• Flow: 10L per minute
• Backflow prevention: Atmospheric vacuum breaker
• Consumption: 2.4L per cycle

Drainage

• Drain pump flexi-hose: 25mm

Electrical

• Three phase:
  • V: 400-415
  • Hz: 50
  • A/ph: 15
  • Max kW: 9.00***

Dimensions

• Width: 655mm
• Depth: 660mm
• Height: 2030mm
• Weight: 80

Water Quality

• pH: min-7  max-8
• Hardness: min-20 max-100
