Product Description

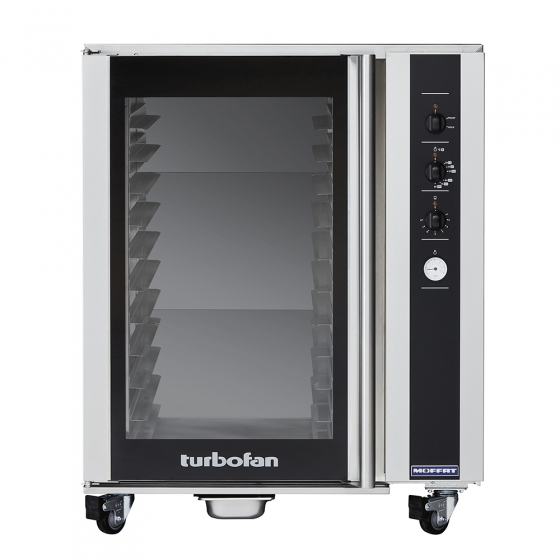

Introducing the Turbofan P85M12 Prover/Holding Cabinet, the perfect solution for your baking needs. With a capacity of 12, 406mm x 736mm trays and 74mm tray spacing, this cabinet is designed for individual use or system installation with Turbofan E35D and E35T Convection Ovens. Its dual-function feature serves as both a prover and holding cabinet, ensuring maximum convenience and efficiency in your bakery.
Built with full double-skin construction and a continuous door seal, this cabinet boasts a low-velocity circulation fan system that ensures even heat distribution. Its mechanical thermostat and humidity level control allows for precise temperature and humidity regulation, and its dual halogen cabinet interior lamps and cabinet temperature display thermometer make monitoring your baked goods easy.
Features
- 12 406mm x 736mm / 16” x 29” tray capacity
- 74mm tray spacing
- 910mm width
- Designed for individual use or system installed with Turbofan E35D and E35T Convection Ovens
- Dual-function Prover and Holding Cabinet
- Full double-skin construction
- Continuous door seal
- Off / Proof / Hold mode selection
- Low-velocity circulation fan system
- Mechanical thermostat
- Humidity level control
- Dual halogen cabinet interior lamps
- Cabinet temperature display thermometer
- Auto water fill system with optional integrated water filter kit
- 4 dia. 76mm castors with 2 front castors dual wheel and swivel lock, 2 rigid rear castors
- 10A cord set fitted
- Side-hinged door (standard LH hinge). Optional RH hinge (field convertible)
- 100% recyclable packaging
Construction
- 304 stainless steel interior cabinet
- Stainless steel front, sides and top exterior
- Stainless steel interior side racks
- Stainless steel frame side hinged door
- 5mm thick door glass
- Stainless steel control panel
- Aluminised coated steel base and rear panels
Controls
- Off / Proof / Holding mode selector switch.
- Mechanical thermostat 20-85°C
- Air heating ON control panel indicator
- Humidity level control
- Humidity tank ON control panel indicator
- Cabinet temperature thermometer
- Auto-fill water system standard
Cleaning
- Stainless steel top and side exterior panels
- Stainless steel interior chamber
- Easy access to all interior surfaces
- Fully removable stainless steel rack support
- Removable humidity water tank (no tools)
Specifications
- Electrical Requirements
- 230-240V, 50Hz, 1 phase, 1.5kW, 6.2A
- 10A cord set fitted
- Water Requirements (optional)
- Cold water connection ¾” BSP male
- 80psi maximum inlet pressure / 20psi minimum inlet pressure
- External Dimensions
- Width 910mm
- Height 1129mm including dia. 76mm castors
- Depth 810mm
- Internal Dimensions
- Width 465mm
- Height 945mm
- Depth 795mm
- Volume 0.35m3
- Nett Weight: 107kg
- Installation Clearances
- Rear 25mm
- LH Side 25mm
- RH Side 25mm
- Clearance from the source of heat
- A minimum distance of 300mm from the appliance sides is required
