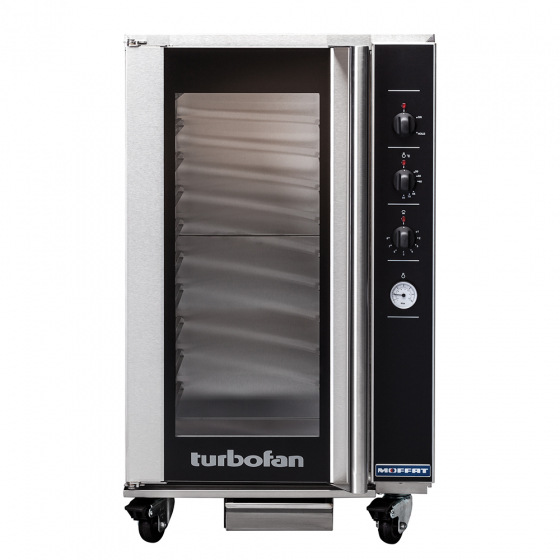

Turbofan P10M Manual Electric Prover And Holding Cabinet

This Turbofan P10M Manual Electric Prover And Holding Cabinet is the perfect addition to your commercial kitchen! This dual-function cabinet can be used as a prover or holding cabinet and is designed for individual use or system installation with the Turbofan E33D Convection Oven. With a 10 x 1/1 GN Gastronorm pan capacity and 74mm tray spacing, this cabinet is compact with a width of only 610mm.

The P10M is designed with your convenience in mind, featuring a 10A plug-in cord set and full double-skin construction. An auto-fill water system with an optional integrated water filter kit ensures that the cabinet is always filled with the necessary water for your cooking needs. The low-velocity circulation fan system and mechanical thermostat with a range of 20-85°C allow you to easily control the temperature and humidity levels.

The P10M is also built for durability, with a 304 stainless steel interior cabinet, stainless steel front, sides and top exterior, and stainless steel interior side racks. The cabinet features a dual halogen interior lighting system, a cabinet temperature display thermometer, and a continuous door seal to keep your food fresh and warm.

With its compact design and easy-to-use features, the Turbofan P10M Manual Electric Prover And Holding Cabinet are a must-have for any commercial kitchen.

Features

• Dual-function Prover and Holding Cabinet
• Designed for individual use or system installed with Turbofan E33D Convection Oven
• 10 x 1/1 GN Gastronorm pan capacity
• 74mm tray spacing
• Compact 610mm width
• 10A plug-in cord set fitted
• Full double-skin construction
• Air heating ON control panel indicator
• Auto water fill system with optional integrated water filter kit
• Continuous door seal
• Auto-fill water system standard
• Off / Prove / Hold mode selection dial
• Low-velocity circulation fan system
• Mechanical thermostat 20-85C
• Humidity level control
• Humidity tank ON control panel indicator
• Dual halogen cabinet interior lamps
• Cabinet temperature display thermometer
• Single phase connection
• 4 dia. 76mm castors with 2 front castors dual wheel and swivel lock, 2 rigid rear castors
• 100% recyclable packaging

Construction

• 304 stainless steel interior cabinet
• Stainless steel front, sides and top exterior
• Stainless steel interior side racks
• Stainless steel frame side hinged door
• 5mm thick door glass
• Stainless steel control panel
• Aluminised coated steel base and rear panels

Controls

• Off / Prove / Holding mode selector switch.
• Mechanical thermostat 20-85°C
• Air heating ON control panel indicator
• Humidity tank ON control panel indicator
• Cabinet temperature thermometer
• Auto-fill water system standard

Cleaning

• Stainless steel top and side exterior panels
• Stainless steel interior chamber
• Easy access to all interior surfaces
• Fully removable stainless steel rack support
• Removable humidity water tank (no tools)
•

Specifications

• Electrical Requirements
  • 230-240V, 50Hz, 1P+N+E, 1.9kW, 8.0A
  • 10A cord set fitted
• Water Requirements (optional)
  • Cold water connection ¾" BSP male
  • 80psi maximum inlet pressure / 20psi minimum inlet pressure
• External Dimensions
  • Width 610mm
  • Height 1015mm including dia. 76mm castors
  • Depth 680mm
• Nett Weight: 77.5kg
• Installation Clearances

  • Rear 25mm
  • LH Side 0mm
  • RH Side 0mm
• Clearance from sources of heat
  • A minimum distance of 300mm from the appliance sides is required
