Blue Seal G580-12 and G580-12E Gas Bratt Pan
Product Description

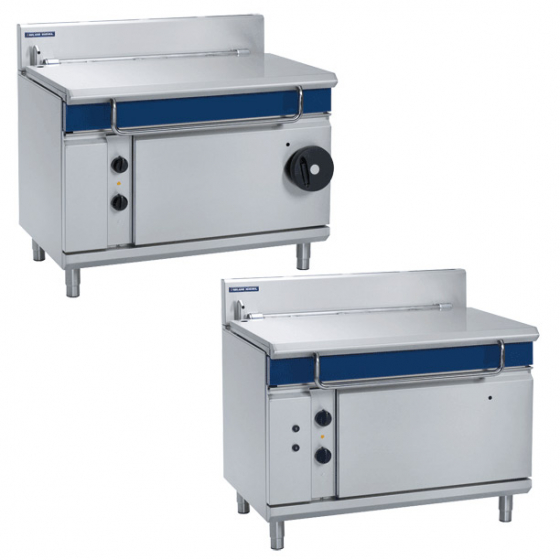

Blue Seal Evolution Series G580-12 / G580-12E
A quality inclusion for any commercial kitchen, our range of industry leading Waldorf and Blue Seal Evolution Series bratt pans. The Blue Seal range of bratt pans have now been expanded to include 80 litre (900mm wide) and 120 litre (1200mm wide) options in gas or electric - perfect for commercial kitchens. These heavy-duty modular bratt pans have been designed for convenient high capacity batch cooking and all models offer manual or electric pan tilting for easy portion control.
Features
- 1200mm electric tilting bratt pan
- 120 litre full stainless steel pan
- 90MJ/hr single 6 bar stainless steel burner
- G580-12 - Manually operated tilting mechanism
- G580-12E - Electronically operated tilting mechanism
- Heavy-duty lid and hinge system
- Galvanised steel chassis
- Full stainless steel pan with 2mm pan body
- 12mm thick stainless steel even heat pan base
- Large capacity pouring spout
- Heavy-duty stainless steel legs with adjustable feet
- Large easy use control knobs " heat resistant reinforced
- Thermostatic control
- Over temperature safety cut-out
- Easy clean, installation and service
- Fully Modular
- Large easy use control knobs - heat resistant reinforced
- Easy view control settings on knobs
- Single control knob for power and heating control
- Indicator lights for power and heating
- Quarter turn water valve control for ease of use
- 50-320°C thermostatic control
- Over temperature safety cut-out
- Fold away handle on manual pan tilt
- Pan up and down switches on electric pan tilt
- Seamless full stainless steel pan with rounded corners
- Easy clean stainless steel exterior panels
- Easy connection access via front service panels
- Service friendly lid hinge system
- Access to all parts from front of unit
Specifications
- Burners
- Single 8 bar stainless steel burner 25kW
- Gas power (gross)
- 25kW, 85,300 Btu/hr
- Pan
- Cooking surface 1080mm x 450mm, 4860cm2
- 215mm deep
- Gas connection
- R 3/4 (BSP) male
- All units supplied with Natural and LP gas regulator
- Water connection
- Cold water connection
- 1/2” tube connection via 15mm crox fitting
- 550kPa, 80psi max water pressure
- Electrical connection
- 220-240Vac, 50/60Hz, 1A, 1P+N+E
- 3 pin 10A plug cordset fitted
- Dimensions
- Width 1200mm
- Depth 812mm
- Height 915mm
- Incl. splashback 1085mm
