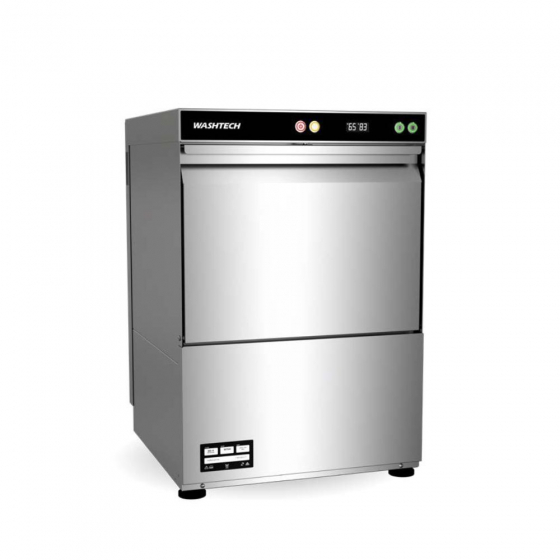

Washtech Undercounter Bedpan Washer and Sanitiser WS-4

The Washtech WS-4 Undercounter Bedpan Washer and Sanitiser is a specialised hygienic washing solution designed for healthcare facilities, aged care environments, hospitals, and care institutions that require reliable cleaning and sanitisation of bedpans and related waste containers. Made for efficiency and infection control, the WS-4 features dedicated wash and sanitising cycles that thoroughly clean, flush, and disinfect items while supporting hygiene compliance and operator safety. The WS-4 has modern features like easy-to-use controls, a two-part filter system, automatic soap dispensing, and hands-free draining that make it easy to use and ensure reliable cleaning results.

Features

• Purpose-built bedpan washer and sanitiser for healthcare and aged care facilities
• 3 and 4-minute wash cycles for fast and effective cleaning
• Cycle sequence includes:
  • Initial cold rinse
  • Wash cycle
  • Flush/drain
  • Extended sanitising rinse
• Washtech hybrid controls for simple and reliable operation
• Stainless steel wash and rinse arms for durability and performance
• Dual-stage stainless steel filtration system improves wash efficiency
• Integrated detergent pump with:
  • Prime switch
  • Low detergent warning light
• Hands-free drainage via integrated drain pump
• Large 370mm clearance accommodates bedpans and related items
• A powerful 0.5 HP wash pump delivers effective cleaning action.
• Heavy-duty stainless steel construction for long service life
• Designed to support hygiene and infection-control protocols

Specifications

• Hot Water: @ 65°C
• Cold Water: @ 20°C
• Connections: 3/4” male, hose supplied
• Pressure: 200-350kPa
• Flow: 20L per minute
• Backflow prevention: Atmospheric vacuum breaker
• Consumption: 7.0L per cycle
• Drain pump flexi-hose: 25mm
• Electrical (Single phase):
  • V: 240
  • Hz: 50
  • A/ph: 25
  • Max kW: 6.37
• Dimensions:
  • Width: 570mm
  • Depth: 600mm
  • Height: 840mm
  • Weight: 75kg
