Waldorf RN8613E - 900mm Electric Range Static Oven

The Waldorf range now offers two defining series with two distinct differences; the Waldorf 800 series continues the tradition of bulletproof performance and dependability with a range of European inspired equipment that re-defines how the ultimate kitchen should be.

The Waldorf 800 and Bold Series of oven ranges offer a number of gas and electric options designed to meet the varying demands of commercial kitchens. In terms of sheer cooking power, both gas and electric have lifted performance to a new level.

In the gas line-up, enhanced performance up top comes by way of the patented 28MJ open cooktop burners, while the power of the electric cooktop is generated through heavy-duty, 2.4kW radiant elements, or optional 2kW solid plates. Down below, both electric and gas ovens feature cast iron sole plates for even heat distribution. Heavy-duty motors and circulation fans in the convection ovens enable reduced cooking times and lower temperatures.

Southern Hospitality Ltd recommends that customers who wish to purchase items such as this consult with one of our friendly sales reps, to iron out all of the fine detail that can accompany such purchases, and ensure that you receive the correct model and specifications for your particular needs.

If you would like to view this product, please contact us at 0800 503 335 or [email protected].

Waldorf 800 Series RN8613E - 900mm Electric Range Static Oven

• 4 radiant element cooktop range with 300mm griddle
• 2/1 GN electric static oven
• 4 x 2.4kW open radiant elements
• 1 x 3.6kW griddle element
• Six temperature setting simmer setting
• Heavy-duty stainless steel finish
• Heavy-duty reinforced control knobs
• Heavy-duty construction
• Drop down door with welded frame
• Oven lining is welded and lined with vitreous enamel
• Cool touch stainless steel door handle
• Adjustable feet and 2 additional rollers
• Easy clean, installation and service
• Optional hot plate elements

Features

• Overall Construction

  • Galvanized steel chassis
  • Welded hob with 1.5mm 304 stainless steel bull nose
  • Splashback and hob sides 1.2mm 304 stainless steel
  • Front panels and oven sides 0.9mm 304 stainless steel
  • 150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel with adjustable feet
• Cooktop

  • 2.4kW open radiant elements in heavy-duty welded element frames
  • Stainless steel spill trays
  • Hot plate elements with machine finished 8mm steel plate (optional extra)
  • 12mm thick mild steel griddle plates
  • 2.5mm 304 stainless steel griddle splash guards
  • Aluminised steel internal construction
• Oven (Each)

  • Fully welded and vitreous enamelled oven liner
  • GN 2/1 capacity with 4 position racking
  • Heavy-duty easy remove heavy wire chrome rack supports
  • Cast iron even heat oven sole plate
  • 6.5kW heating elements
  • Welded frame drop down door with heavy-duty spring hinge system
  • 0.9mm 304 stainless steel door outer
  • 1.0mm press formed vitreous enamelled door inner
  • High density fibreglass insulated
  • Stay cool stainless steel door handle with cast metal handle mounts
  • Supplied with two chrome wire oven racks

• Controls

  • Controls

    • Large easy use control knob - heat resistant reinforced
    • Easy view control settings on knob
  • Cooktop

    • Radiant elements with energy regulator controls
    • Hot plate elements with energy regulator controls
    • 50-320˚C thermostat per 300mm griddle section
    • Indicator lights for power and heating for each griddle control
    • Power indicator light for each element control
  • Oven

    • Separate temperature and top heat power regulation controls
    • 50-320˚C thermostatic control
    • Lo-Hi top heat control
    • Indicator lights for power and heating

• Cleaning and Servicing

  • All models with easy clean stainless steel external finish
  • Stainless steel spill trays
  • Lift up element and griddle sections
  • Removable oven racking and sole plate
  • Easy clean vitreous enamel oven and door inner
  • Door hinge spring adjustable on unit (door outer removed)
  • Door disengages for lift off removal and increased service access
  • Access to all parts from front of unit

Specifications

• Open Burners:

  • 2.4kW Open Radiant elements
  • 2.0kW Hot Plate elements
• Oven

  • 4.5kW bottom heat element
  • 2.0kW top heat element
• Electrical requirements: 19.7kW
• Electrical connection

  • 20.9kW max
  • 400-415Vac, 50/60hz, 3P+N+E
  • L 1 29.3A max
  • L2 29.3A max
  • L3 28.3A max
• Oven Dimensions

  • Width 665mm
  • Depth 650mm
  • Height 400mm
  • Rack size 650mm x 600mm
  • Rack positions 4
• Electrical connection

  • 69mm from RH side, 484mm from rear, and 150mm from floor
• Dimensions

  • Width 900mm
  • Depth 805mm
  • Height 915mm
  • Incl. splashback 1130mm
  • Incl. low back 970mm

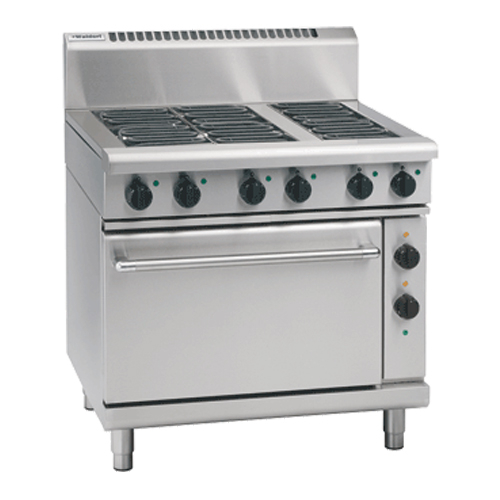

Image pictures is a Waldorf 800 Series RN8610E - 900mm Electric Range Static Oven.
