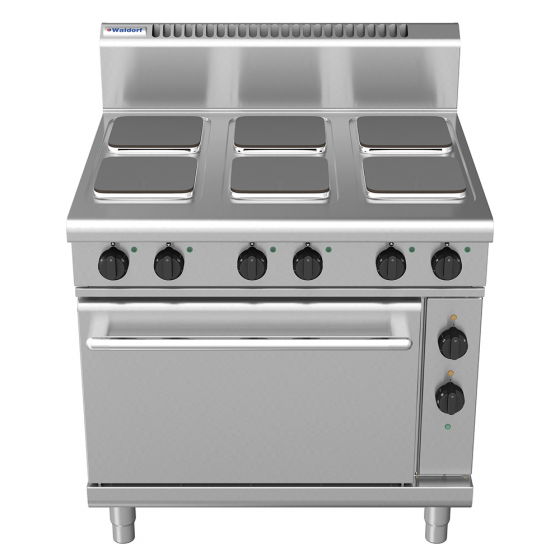

Waldorf RN8610SE Electric Static Oven Ranges

The Waldorf RN8610SE Electric Static Oven Ranges is a robust culinary solution with 6 cooking zones and a 6.5kW electric static oven. The heavy-duty construction, cast iron hot plate elements, and stainless steel exterior ensure durability and easy maintenance. The fully modular design allows for seamless integration. The oven features a drop-down door, vitreous enamelled liner, and adjustable temperature controls. Easy cleaning and serviceability make it a perfect addition to any professional kitchen.

Features

• Heavy-duty construction
• 2.6kW cast iron hot plate elements
• GN 2/1 6.5kW electric static oven
• Drop down door
• Stainless steel exterior
• Easy clean
• Easy service
• Fully modular
• Overall Construction

  • Galvanized steel chassis
  • Welded hob with one-piece formed 2.0mm 304 stainless steel top
  • Splashback and hob sides 1.2mm 304 stainless steel
  • Front panels and oven sides 0.9mm 304 stainless steel
  • 150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel with adjustable feet
• Cooktop
  • 2.6kW cast iron hot plate elements with thermal protection
  • Aluminised steel internal construction
• Oven
  • Fully welded and vitreous enamelled oven liner
  • GN 2/1 capacity with 4 position racking
  • heavy-duty easy remove heavy wire chrome rack supports
  • Cast iron even heat oven sole plate
  • 6.5kW heating elements
  • Welded frame drop-down door with heavy-duty spring hinge system
  • 0.9mm 304 stainless steel door outer
  • 1.0mm press formed vitreous enamelled door inner
  • High-density fibreglass insulated
  • Stay cool stainless steel door handle with cast metal handle mounts
  • Supplied with two chrome wire oven racks

Controls

• Large easy-use control knob - heat-resistant reinforced
• Easy view control settings on knob
• Cooktop

  • Cast iron hot plate elements with 6 heat position switch
  • Power indicator light for each element control
• Oven

  • Separate temperature and top heat power regulation controls
  • 50-320˚C thermostatic control
  • Lo-Hi top heat control
  • Indicator lights for power and heating

Cleaning and Servicing

• One-piece worktop with formed hob wells to contain spills
• Removable oven racking and sole plate
• Easy clean vitreous enamel oven and door inner
• The door hinge spring is adjustable on the unit (door outer removed)
• Door disengages for lift-off removal and increased service access
• Access to all parts from the front of the unit
•
