Waldorf RN8600SE Electric Cooktops with Seal Hobs

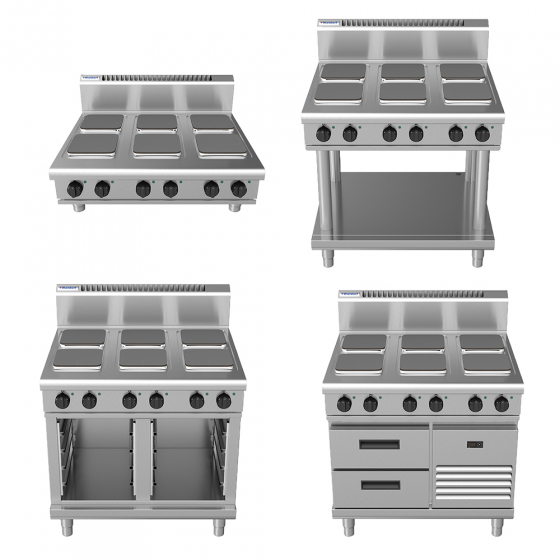

The Waldorf RN8600SE Electric Cooktops with Seal Hobs and Refrigerated Base - a complete culinary solution. With 2.6kW cast iron hot plate elements and an easy-to-clean stainless steel exterior, these cooktops provide versatility and durability. Choose from four base unit models - Bench Mount, Leg Stand, Cabinet Base, or Refrigerated Base, each offering unique advantages for your kitchen setup.

The Refrigerated Base features two GN 1/1 drawers with magnetic gaskets and a self-contained suite-matched modular design. The fully modular and easily serviceable construction ensures seamless integration and convenient maintenance.  Perfect for commercial kitchens, restaurants, hotels, catering businesses, and institutional settings, providing efficient cooking and refrigeration in one unit.

Features

• Heavy-duty construction
• 2.6kW cast iron hot plate elements
• 4 models of base unit
• 1 model of refrigerated base with two GN 1/1 drawers
• Stainless steel exterior
• Easy clean
• Easy service
• Fully modular
• Cooktop

  • Welded hob with one-piece formed 2.0mm 304 stainless steel top
  • Splashback and side panels 1.2mm 304 stainless steel
  • Front panels 0.9mm 304 stainless steel
  • 2.6kW cast iron hot plate elements with thermal protection
  • Aluminised steel internal construction
• Cooktop

  • Large easy-use control knob - heat-resistant reinforced
  • Easy view control settings on the knob
  • Cast iron hot plate elements with 6 heat position switch
  • Power indicator light for each element control
• Refrigerated Base

  • Digital control electronic thermostat
  • Automatic defrost
  • Automatic evaporation of defrosted water
  • -2 +8˚C temperature range
• Cleaning and Servicing

  • All models with easily clean stainless steel external finish
  • One-piece worktop with formed hob wells to contain spills
  • Access to all parts from the front of the unit
  • Refrigerated Base condenser removable through the front of the unit

Bench mount (supplied as –B model)

• Four 63mm dia. heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet
• Adjustable height 80mm – 105mm

Leg Stand (supplied as –LS model)

• Fully modular for matched suite finish
• Framed top for connection to Cooktop
• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Fully modular framed stand shelf with 0.9mm 304 stainless steel finish
• Quick assembly design (no tools required)

Cabinet Base (supplied as –CB model)

• Fully modular for match suite finish
• Double skin 0.9mm 304 stainless steel interior and exterior
• Optional GN 1/1 4-position racking kit
• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet

Refrigerated Base (supplied as –RB model)

• Self-contained suite matched modular base
• Ventilated system with R134a refrigerant
• -2 + 8˚C temperature (Tropical Climate rated)
• Two GN 1/1 drawers
• 100mm deep pan capacity
• Heavy-duty European telescopic drawer guides
• Magnetic drawer gaskets (replaceable without tools)
• 50mm fully foamed CFC-free insulation
• 304 stainless steel exterior and interior
• Anti-corrosion treated evaporator
• No condensate drain required
• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Condensing unit removable through the front of the unit for service
• Easy clean interior
