Waldorf 800 Series BP8080E - 900mm Electric Tilting Bratt Pan
Product Description
A quality inclusion for any commercial kitchen, our range of industry leading Waldorf and Blue Seal Evolution Series bratt pans. The Blue Seal range of bratt pans have now been expanded to include 80 litre (900mm wide) and 120 litre (1200mm wide) options in gas or electric - perfect for commercial kitchens. These heavy-duty modular bratt pans have been designed for convenient high capacity batch cooking and all models offer manual or electric pan tilting for easy portion control.
Southern Hospitality Ltd recommends that customers who wish to purchase items such as this consult with one of our friendly sales reps, to iron out all of the fine detail that can accompany such purchases, and ensure that you receive the correct model and specifications for your particular needs.
If you would like to view this bratt pan, please contact us at 0800 503 335 or [email protected].

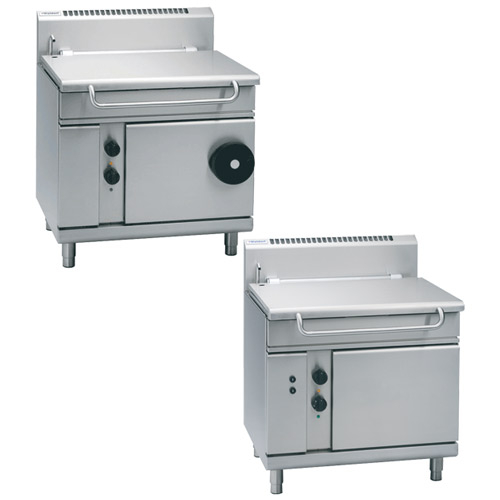

Waldorf 800 Series BP8080E and BP8080EE - 900mm Electric Tilting Bratt Pan
Product Features
- 900mm electric tilting bratt pan
- 80 litre capacity
- 3 x 4kW stainless steel heating elements
- EMW106
- Manually operated tilting mechanism
- Fold away handle
- EMW118
- Electric power tilting mechanism
- Heavy-duty lid and hinge system
- Galvanised steel chassis
- Full stainless steel pan with 2mm pan body
- 12mm thick stainless steel even heat pan base
- Large capacity pouring spout
- Heavy-duty stainless steel legs with adjustable feet
- Large easy use control knobs " heat resistant reinforced
- Thermostatic control
- Over temperature safety cut-out
- Easy clean, installation and service
- Large easy use control knobs - heat resistant reinforced
- Easy view control settings on knobs
- Single control knob for power and heating control
- Indicator lights for power and heating
- Quarter turn water valve control for ease of use
- 50-320˚C thermostatic control
- Over temperature safety cut-out
- Pan up and down switches on electric pan tilt
- Seamless full stainless steel pan with rounded corners
- Easy clean stainless steel exterior panels
- Easy connection access via front service panels
- Service friendly lid hinge system
- Access to all parts from front of unit
- Elements: 3 x 4kw stainless steel sheathed heating elements clad to pan base
- Electrical requirements
- 12kW
- 400-415Vac, 50/60hz, 3P+N+E
- Pan
- Cooking surface 780mm x 450mm, 3510cm2
- 215mm deep
- Water connection
- Cold water connection 270mm from side, 574mm from rear, and 252mm from floor
- 1/2” tube connection via 15mm crox fitting
- 550kpa, 80psi max water pressure
- Electrical connection
- 60mm from LH side, 405mm from rear, and 150mm from floor
- Dimensions
- Width: 900mm
- Depth: 805mm
- Height: 915mm
- Incl. splashback: 1130mm
- Incl. low back: 970mm
- With lid open: 1600mm
- Nett weight: 180kg
