Waldorf Cooktops

Waldorf 1200mm Gas Cooktop on Refrigerated Base

Starting from $14,160.30 plus GST


free shipping
Free shipping for Online Orders over $150 + gst*
warranty-
12 Months Parts & Labour Warranty

Product Description

The Waldorf range now offers two defining series with two distinct differences; the Waldorf 800 series continues the tradition of bulletproof performance and dependability with a range of European inspired equipment that re-defines how the ultimate kitchen should be.

Waldorf 900mm target tops are available as stand-alone hobs, or with a choice of four base units - cabinet base, leg stand, refrigeration base, or oven base (static/convection, gas/electric). Featuring a high output, dual ring cast iron burner, the super heavy-duty target top casting provides outstanding heat recovery and heat control. Outstanding thermal efficiency is achieved by way of a burner box lined with 50mm refractory ceramic blocks.

Southern Hospitality Ltd recommends that customers who wish to purchase items such as this consult with one of our friendly sales reps, to iron out all of the fine detail that can accompany such purchases, and ensure that you receive the correct model and specifications for your particular needs.

If you would like to view this cooktop, please contact us at 0800 503 335 or [email protected].

Waldorf 800 Series RN8800G-RB / RN8809G-RB - 1200mm Gas Cooktop Refrigerated Base - Product Features

  • Heavy-duty construction
  • Heavy-duty stainless steel finish
  • Flame failure protection on all burners
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands
  • Heavy-duty reinforced control knobs
  • Adjustable feet and 2 additional rollers
  • Easy clean, installation and service
  • Pilot Burners Optional
  • RN8800G-RB
    • 8 burner cooktop on refrigerated base
    • 8 x 28MJ/hr open burners
  • RN8809G-RB
    • 2 burner cooktop with 900mm griddle on refrigerated base
    • 2 x 28MJ/hr open burners
    • 3 x 20MJ/hr griddle burners

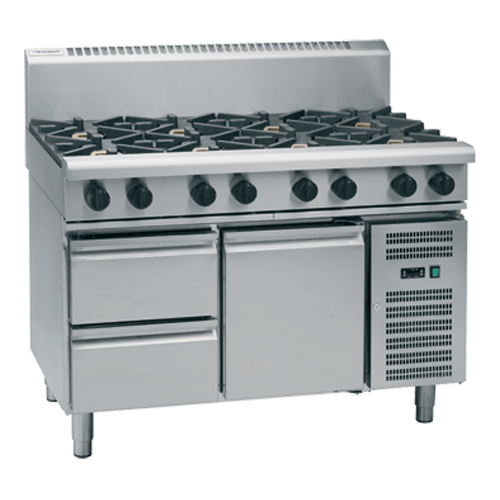

Image Shown as RN8800G-RB

Features

  • Cooktop
    • Welded hob with 1.5mm 304 stainless steel bull nose
    • Splashback and side panels 1.2mm 304 stainless steel
    • Front panels 0.9mm 304 stainless steel
    • Aluminised steel internal construction
    • Cast iron 28MJ/hr open burners with forged brass cap
    • Vitreous enamelled cast iron potstands
    • Vitreous enamelled open burner spill covers
    • Cast iron simmer plates (optional extra)
    • 12mm thick mild steel griddle plate
    • 2.5mm 304 stainless steel griddle splash guards
    • Vitreous enamelled spill trays
    • Griddle sections are standard on RH side. Available on LH side to order or by conversion.
  • Refrigerated Base
    • Self contained suite matched modular base
    • Ventilated system with R134a refrigerant
    • -2˚to + 8˚C temperature (Tropical Climate rated)
    • Two GN 1/1 drawers and one door standard
    • 100mm deep pan drawer capacity
    • Heavy-duty European telescopic drawer guides
    • Magnetic drawer gaskets (replaceable without tools)
    • 50mm fully foamed CFC free insulation
    • 304 stainless steel exterior and interior
    • Anti-corrosion treated evaporator
    • No condensate drain required
    • 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
    • Condensing unit removable through front of unit for service
    • Easy clean interior
    • Digital control electronic thermostat
    • Automatic defrost
    • Automatic evaporation of defrost water
  • Controls
    • Variable high to low controls to open burners
    • Open burners flame failure standard with pilot burners optional
    • Variable high to low controls to griddles
    • Griddles standard with pilot, flame failure and piezo ignition
    • Large easy use control knob - heat resistant reinforced
    • Easy view control settings on knob
  • Cleaning and Servicing
    • All models with easy clean stainless steel external finish
    • Lift off burners heads and vitreous enamelled burner spill covers
    • Vitreous enamelled spill trays under open burner and griddle sections
    • Access to all parts from front of unit
    • Refrigerated Base condenser removable through front of unit

Specifications

  • Burners
    • Open Burners 28MJ/hr dual flame ring with simmer rate
    • Griddle Burners 20MJ/hr per 300mm section
  • Gas power
    • RN8800G 224 MJ/hr, 62.2kW
    • RN8809G 116 MJ/hr, 32.2kW
  • Gas connection
    • R 3/4 (BSP) male
    • 130mm from RH side, 32mm from rear, and 655mm from floor
    • All units supplied with Natural and LP gas regulator
  • Dimensions
    • Width 1200mm
    • Depth 805mm
    • Height 915mm
    • Incl. splashback 1130mm
    • Incl. low back 970mm
  • Gas types
    • Available in Natural gas and LP gas
    • Please specify when ordering
    • Units supplied complete with gas type conversion kits
    • Other gas types on request
