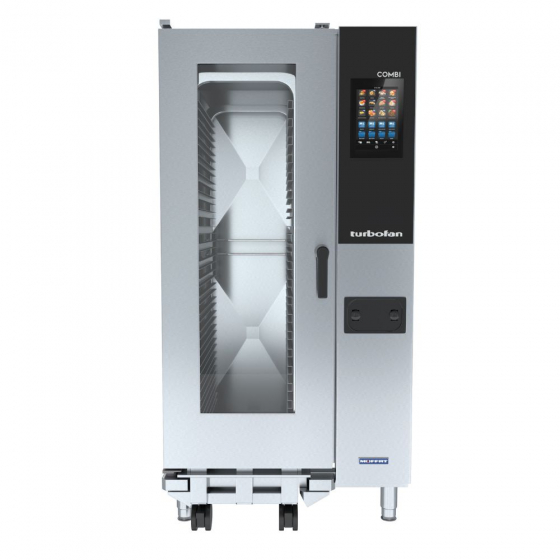

Turbofan EC40T20 Tray Touch Electric Combi Oven

The Turbofan EC40T20 Tray Touch Electric Combi Oven is a high-performance, intelligent cooking solution designed for demanding commercial kitchens. With a 20 x 1/1 GN tray capacity and 37.2 kW heating power, this electric direct steam oven delivers exceptional speed, precision, and versatility. Featuring a high-definition 10-inch touch screen, programmable cooking modes, and advanced systems like Autoclima®, Fast-Dry Boosted®, and MULTILEVEL PLUS, it ensures consistent results and efficient workflow. Ideal for restaurants, hotels, and catering operations, it supports night cooking, just-in-time service, and automatic cleaning with reduced detergent usage. Built with durable AISI 304 stainless steel and equipped with Wi-Fi and USB connectivity, it’s the ultimate solution for modern foodservice operations.

Features

• Capacity & Power: 20 x 1/1 GN trays, 63 mm spacing, 37.2 kW heating power
• Cooking Modes: Convection, Steam, and Combi with boosted pre-heating up to 320°C
• Smart Systems: Fast-Dry Boosted®, Autoclima®, ECOVAPOR, MULTILEVEL PLUS, and JIT mode
• Touch Interface: 10-inch LCD screen with programmable recipes, auto cooking, and ICS
• Cleaning: VCS automatic washing system with 7 programmes; WMS for scheduled cleaning
• Connectivity: USB for HACCP data, software updates, and recipe management; Wi-Fi enabled
• Construction: AISI 304 stainless steel chamber with rounded edges for airflow and easy cleaning
• Safety & Efficiency: Core temperature probe, auto fan reversal, low-consumption LED lighting
• Additional Features: Night cooking mode, externally fitted hand shower, triple-action water filter
• Door Design: Double tempered glass with rear ventilation and heat-reflecting interior glass

Specifications

• Dimensions
  • Width: 892mm
  • Depth: 862mm
  • Height: 1812mm
  • Weight: 273kg
• Shelves

  • 1/1 GN 20
  • Shelf Spacings: 63mm
• Supply line voltage for Electric Combi: 400-415V ~ 50Hz, 3P+N+E, 37.2kW, 58A
• Power Connection

  • Heating power (kW) 37.2
• Installation clearances

  • rear 50mm
  • right 500mm*
  • left 50mm
• Water connection requirements
  • cold water
  • flow pressure (200-500kPa)
  • soft water connection*
  • shut-off valve with return flow inhibitor and dirt filter
  • water supply R¾
  • R50 wastewater connection

(*Water softener may be required. Please refer to installation manual for water treatment values.)
