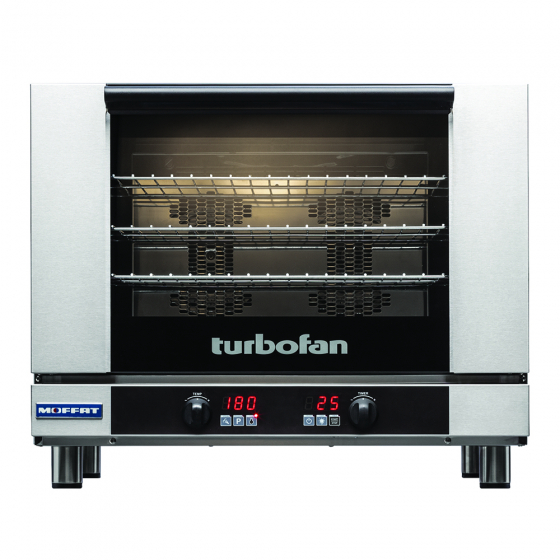

Turbofan E28D4 Full Size Digital Electric Convection Oven

Introducing the Turbofan E28D4 Full Size Digital Electric Convection Oven - the ultimate solution for your commercial kitchen needs! With a compact 810mm width, this oven boasts an impressive 4 x 460mm x 660mm full-size sheet pan capacity and 4 x 400mm x 600mm tray capacity, making it ideal for busy restaurants and cafes.

Featuring electronic thermostat control and timer, as well as manual and program mode, the Turbofan E28D4 offers 20 programs with 3-stage cooking and stage-end alarms, ensuring precise and consistent cooking results every time. With steam injection mode and manual injection, twin bi-directional reversing fans, and 6kW heating power, you can effortlessly prepare a variety of dishes to perfection.

The oven's vitreous enamel chamber and plug-in continuous door seal make it easy to clean, while the safe-touch vented drop-down door and stay-cool handle ensure safe and convenient operation. The Turbofan E28D4 also comes equipped with dual halogen oven lamps, twin 180mm Diameter full stainless steel oven fans, and anti-skid 50mm diameter. 76mm high adjustable stainless steel feet, providing optimal lighting and ventilation and stable footing.

Constructed with a vitreous enamelled fully welded oven chamber and stainless steel front, sides, and top exterior, the Turbofan E28D4 is built to last. Its electronic controls with digital time and temperature display, large 20mm high LED displays, and adjustable buzzer/alarm volume make it user-friendly and easy to operate. With a thermostat range of 50-260°C and a timer range from 180 minutes in countdown mode, the Turbofan E28D4 can handle all your cooking needs.

Features

• 4 460mm x 660mm / 18” x 26” full size sheet pan capacity
• 4 400mm x 600mm tray capacity
• 80mm tray spacing
• Compact 810mm width
• Digital display Time and Temperature controls
• Large easy view ¾” / 20mm high displays
• Electronic thermostat control
• Electronic timer
• Manual mode and Program mode
• 20 programs with 3-stage cooking and stage-end alarms
• Steam injection mode and manual injection
• Twin bi-directional reversing fans
• 6kW heating power
• Vitreous enamel oven chamber
• Plug-in continuous oven door seal
• Safe-Touch vented drop-down door
• Stay-Cool door handle
• Heavy-duty door hinges
• Easy clean door glass system
• Dual halogen oven lamps
• Twin dia. 180mm full stainless steel oven fans
• Anti-skid 50mm dia. 76mm high adjustable stainless steel feet
• 4 oven wire racks supplied
• 100% recyclable packaging

Construction

• Vitreous enamelled fully welded oven chamber
• Stainless steel front, sides and top exterior
• Stainless steel oven fan baffle and oven vent
• Removable 4-position chrome plated wire side racks
• Oven racks chrome plated wire (3 supplied)
• Stainless steel frame drop-down hinged door
• 5mm thick door outer glass
• 5mm thick low energy loss door inner glass
• Heavy-duty counterbalanced door hinges
• Wear resistant powder-coated welded door handle
• Stainless steel control panel
• Aluminised coated steel base and rear panels

Controls

• Electronic controls with Digital Time and Temperature display,
• Manual or Program modes
• Large 20mm high LED displays
• Two individual time and temperature setting control knobs
• ON/OFF and Oven Light key
• Timer Start/Stop key
• Steam injection key
• Programs select key
• Actual temperature display key
• Adjustable buzzer/alarm volume
• Thermostat range 50-260°C
• Timer range from 180 minutes in countdown mode
• Timer ranges up to 999 minutes in time count mode for holding, slow cooking
• Over-temperature safety cut-out

Cleaning

• Stainless steel top and sides continuous exterior panel
• Vitreous enamelled oven chamber
• Fully removable chrome-plated oven side racks
• Removable stainless steel oven fan baffle
• Full stainless steel oven fan
• Easy clean door system with hinge out door inner glass (no tools required)
• Removable plug-in oven door seal (no tools required)
• 76mm high stainless steel feet for easy access underside

Specifications

• External Dimensions

  • Width 810mm
  • Height 662mm including 76mm feet
  • Depth 762mm
• Oven Internal Dimensions

  • Width 695mm
  • Height 355mm
  • Depth 470mm
  • Volume 0.116m3
• Oven Rack Dimensions

  • Width 660mm
  • Depth 460mm
• Nett Weight - 69.5kg
• Electrical Requirements

  • 230-240V, 50/60Hz, 1P+N+E, 5.8kW, 25A
  • No cord set supplied
• Water Requirements (optional)

  • Cold water connection ¾” BSP male
  • 80psi maximum inlet pressure / 20psi minimum inlet pressure
