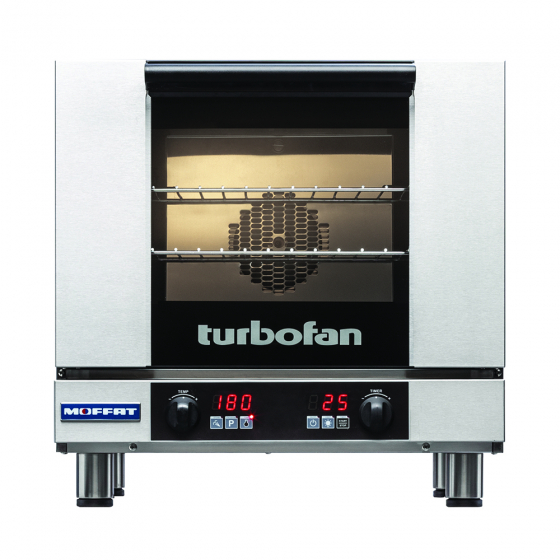

Turbofan E23D3 Half Size Digital Electric Convection Oven

Introducing the Turbofan E23D3 Half Size Digital Electric Convection Oven, designed to meet the needs of any busy kitchen. With a compact width of just 610mm, this oven boasts an impressive capacity of three 460mm x 330mm half-size sheet pans or three GN 2/3 pans with 85mm tray spacing.

This oven features digital display time and temperature controls with large, easy-to-view ¾” high displays, making it easy to monitor your cooking progress. With 20 programs, including 3-stage cooking and stage-end alarms, you can achieve precise results every time. The bi-directional reversing fan system ensures even heat distribution throughout the oven chamber, while the steam injection mode allows you to add moisture to your cooking process.

Constructed with a vitreous enamelled fully welded oven chamber, a stainless steel exterior, and a removable plug-in continuous oven door seal, cleaning is a breeze. The oven also comes equipped with a safe-touch vented drop-down door, a stay-cool door handle, and heavy-duty door hinges.

With a 2.8kW heating power and 15A plug-in cord set, this oven is a powerful addition to any kitchen. Plus, it comes with three oven wire racks and adjustable stainless steel feet for added convenience.

Features

• 3 460mm x 330mm / 18” x 13” half size sheet pan capacity
• 3 GN 2/3 pan capacity
• 85mm tray spacing
• Compact 610mm width
• Digital display Time and Temperature controls
• Large easy view ¾” / 20mm high displays
• Electronic thermostat control
• Electronic timer
• Manual mode and Program mode
• 20 programs with 3-stage cooking and stage-end alarms
• Steam injection mode and manual injection
• Bi-directional reversing fan system
• 2.8kW heating power
• 15A plug-in cord set fitted
• Vitreous enamel oven chamber
• Plug-in continuous oven door seal
• Safe-Touch vented drop-down door
• Stay-Cool door handle
• Heavy-duty door hinges
• Easy clean door glass system
• Halogen oven lamp
• Dia. 180mm full stainless steel oven fan
• Anti-skid 50mm dia. 76mm high adjustable stainless steel feet
• 3 oven wire racks supplied
• 100% recyclable packaging

Construction

• Vitreous enamelled fully welded oven chamber
• Stainless steel front, sides and top exterior
• Stainless steel oven fan baffle and oven vent
• Removable 3-position chrome plated wire side racks
• Oven racks chrome plated wire (3 supplied)
• Stainless steel frame drop-down hinged door
• 5mm thick door outer glass
• 5mm thick low energy loss door inner glass
• Heavy-duty counterbalanced door hinges
• Wear resistant powder-coated welded door handle
• Stainless steel control panel
• Aluminised coated steel base and rear panels
•

Controls

• Electronic controls with Digital Time and Temperature display,
• Manual or Program modes
• Large 20mm high LED displays
• Two individual time and temperature setting control knobs
• ON/OFF and Oven Light key
• Timer Start/Stop key
• Steam injection key
• Programs select key
• Actual temperature display key
• Adjustable buzzer/alarm volume
• Thermostat range 50-260°C
• Timer range from 180 minutes in countdown mode
• Timer ranges up to 999 minutes in time count mode for holding, slow cooking
• Over-temperature safety cut-out
•

Cleaning

• Stainless steel top and sides continuous exterior panel
• Vitreous enamelled oven chamber
• Fully removable chrome-plated oven side racks
• Removable stainless steel oven fan baffle
• Full stainless steel oven fan
• Easy clean door system with hinge out door inner glass (no tools required)
• Removable plug-in oven door seal (no tools required)
• 76mm high stainless steel feet for easy access underside

Specifications

• External Dimensions

  • Width 610mm
  • Height 607mm including 76mm feet
  • Depth 642mm
• Oven Internal Dimensions

  • Width 495mm
  • Height 305mm
  • Depth 340mm
  • Volume 0.51m3
• Oven Rack Dimensions

  • Width 460mm
  • Depth 330mm
• Nett Weight - 42.4kg
• Electrical Requirements

  • 230-240V, 50/60Hz, 1P+N+E, 5.8kW, 25A
  • 15A cord set supplied
• Water Requirements (optional)

  • Cold water connection ¾” BSP male
  • 80psi maximum inlet pressure / 20psi minimum inlet pressure
