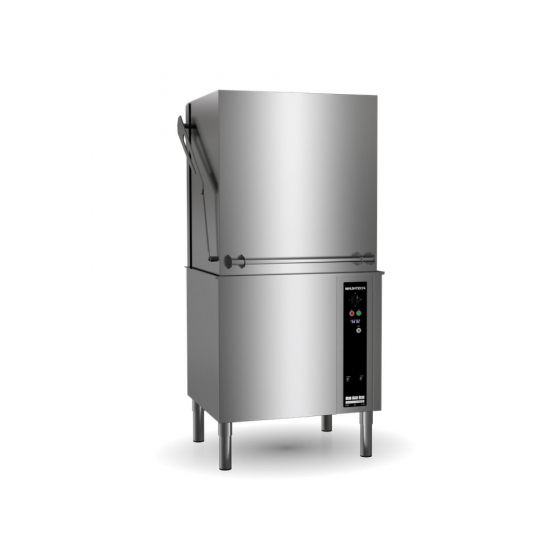

Starline AL8x Passthrough Warewasher

The Starline AL8x Passthrough Warewasher is purpose-built for high-volume hospitality operations that require maximum throughput, power, and reliability. Designed for large restaurants, hotels, function centres, and institutional kitchens, it delivers exceptional cleaning performance even during peak service periods. The oversized wash chamber accommodates both standard and oversized racks, increasing flexibility and productivity. Powerful wash technology combined with Washtech hybrid controls ensures consistent results while remaining easy to use and service. Heavy-duty stainless-steel construction and advanced filtration make it a long-lasting solution for demanding commercial environments.

Features

• High Productivity Output: Cleans 1,320+ plate equivalents per hour to support continuous high‑volume service
• Multiple Cycle Options: 60, 180, and 300‑second cycles (1, 3, and 5 minutes) to match varying soil levels and operational flow
• Washtech Hybrid Controls: Intuitive interface designed for simple operation, diagnostics, and easier servicing
• Powerful Wash System: Heavy‑duty 2.0 HP wash pump with a custom hand‑built stainless‑steel manifold for superior wash pressure
• Independent Wash & Rinse Arms: Stainless‑steel wash and rinse arms engineered for optimal coverage and cleaning efficiency.
• Assured Rinse System: An integrated rinse pump guarantees consistent rinse pressure and sanitisation results
• Dual Chemical Pumps: Built‑in detergent and rinse aid pumps provide accurate dosing for reliable wash quality.
• Advanced Filtration: Two‑stage stainless‑steel wash and drain filtration protects components and maintains water cleanliness.
• Hands‑Free Drainage: An integrated sump and drain pump allows safe, hygienic draining without manual handling
• Heavy‑Duty Construction: Full stainless‑steel body and manifold designed for durability, hygiene, and commercial longevity
• Power Requirements: Available in 3-phase / 15A or 3-phase / 25A configurations to suit site electrical capacity

Specifications

• Hot Water:
  • Temperature: 60°C
  • Connection: 3/4” male, hose supplied
  • Pressure: 100-350kPa
  • Flow: 10L per minute
  • Backflow prevention: Atmospheric vacuum breaker
  • Consumption: 2.6L per cycle
• Drainage:
  • Drain pump flexi-hose: 25mm
• Electrical: Three phase
  • V: 400
  • Hz: 50
  • A/ph: 15 & 25
  • Max kW: 10.50 and 18.00**
• Dimensions:
  • Width (mm): 860
  • Depth (mm): 760
  • Height (mm): 1745
  • Weight (kg): 155
  • Volume (m3):
• Water Quality:
  • pH: Min-7, Max-8

  • TDS(ppm): Min-1, Max-13

  • Hardness: Max-100
  • Cl-: Max-100

  • SO4: Max-400

  • Fe: Max-0.1

  • Cl2: Max-0.1
