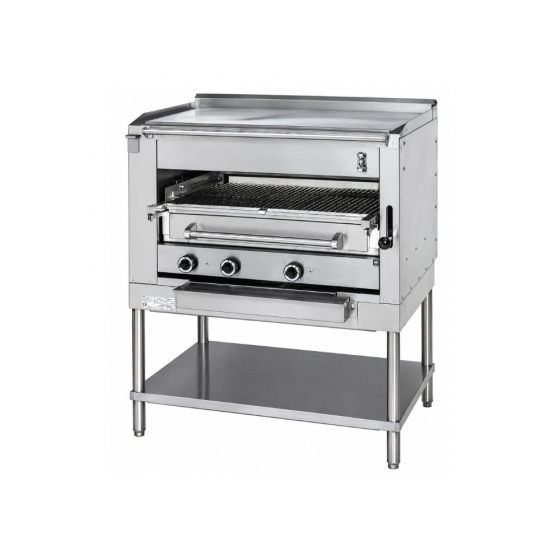

Montague C45SHBPL Legend Steakhouse Broiler with Plancha Top

The Montague C45SHBPL Legend Steakhouse Broiler with Plancha Top is a heavy-duty commercial gas broiler designed to deliver exceptional grilling performance and versatility for steakhouses, restaurants, hotels, and high-volume kitchens. Combining powerful infrared broiling technology with a Spanish-style plancha cooking surface, this unit provides superior heat distribution, precise control, and outstanding cooking results across a wide range of menu items.

Featuring ceramic radiant heating and high-output cast iron burners, the broiler delivers intense, uniform infrared heat for steakhouse-quality cooking. The integrated 13 mm thick precision-ground plancha plate offers additional cooking flexibility for searing, grilling, and preparing breakfast items, seafood, vegetables, and more. The counter-balanced roll-out grid system allows easy access to food and effortless height adjustment for optimal cooking control.

Features

Plancha Top

• 13 mm thick raised polished steel plancha plate
• Precision-ground cooking surface for even heat distribution
• Interior grease container
• Three-sided perimeter grease trough
• Designed for high-volume plancha cooking applications

Burner & Radiant System

• 42,000 BTU/hr cast iron burners
• Ceramic radiants provide uniform infrared heating.
• Individual burner controls for precise temperature management
• Standing pilot ignition system

Roll-Out Grid

• Three chrome-plated steel cooking grid sections
• Counter-balanced grid assembly for easy height adjustment
• Infinite grid height adjustment from 51mm to 127mm
• Positive locking lift handle with cool-touch ball grip
• Quiet ball-bearing mounted roll-out grid assembly
• Shielded horizontal grab-bar handle
• Drawer-mounted grid system for easy pull-out access

Standard Construction

• Satin-finish stainless steel front
• High-temperature aluminised broiler interior
• Black painted exterior surfaces with electrolytic zinc undercoating
• Full-width grease deflector beneath rollout grid
• Extra-large removable front grease drawer
• ¾" NPT rear gas manifold connection
• Stainless steel stand with bottom shelf
• Height-adjustable bullet feet
• Heavy-duty commercial construction

Specifications

• Brand: Montague
• Model: C45SHBPL
• Series: Legend Steakhouse Broiler
• Product Type: Gas Infrared Broiler with Plancha Top
• Overall Width: 1143 mm
• Dimensions: 1143mm (W) × 812mm (D) × 915mm (H)
• Weight: 289 kg
• Number of Grids: 3
• Broiler Cooking Area: 889 mm × 686 mm
• Plancha Cooking Surface: 1067 mm × 711 mm
• Plancha Plate Thickness: 13 mm
• Total Output: 126,000 BTU
• Power: Gas
• Gas Connection: ¾" NPT Rear Manifold
• Stand: Stainless Steel with Bottom Shelf
