Merrychef e1s High Speed Cook Oven 15A

Increase your turnover with great food fast at the touch of an icon. Merrychef eikon’s high-speed cook oven range is the oven platform for cooking professionals for anyone, anytime or place. The eikon range of high-speed cook ovens boasts ultra-short cooking times and ultra-high energy efficiency and is very easy to use with the easyTouch touchscreen interface. Perfect for any food service operators from quick service restaurants, café and bistros, kiosks, and snack bars to service stations, hotels and restaurants, there is a model within the eikon range to suit.

Features

• Compact 407mm wide footprint - fits on a 500mm bench depth
• Oven cavity to suit up to 306mm x 308mm / 12” plate size
• Plug & Play - single 15A power supply
• Best in class energy efficiency - less than 0.7kWh in standby mode
• Rapid cooking up to 10-12 times faster than a conventional oven
• Rapid cooking technology combines three heat technologies: tuned impingement, microwave and convection heat
• Ventless cooking capabilities through a built-in catalytic converter
• Colour easyTouch® icon driven touch screen control panel with the capability of storing up to 1024 multi-stage recipe programs
• Each program offers up to six (6) stages with programmable cooking times, microwave power settings and user instructions for each stage
• Easy menu updates or data transfer via USB
• Built-in diagnostic testing
• Quiet operation - 52dbA in standby mode
• Cool-to-touch exterior allows for zero space at the sides and back
• Easy access to the front-mounted air filter
• Easy to clean cavity with large rounded edges
• Fast heat up and cool down
• Optimum time management with automatic On & Off timers
• Precise temperature setting range from 100°C - 260°C
• The black exterior on stainless steel
• Includes

  • Solid cook plate
  • Guarded paddle with sides

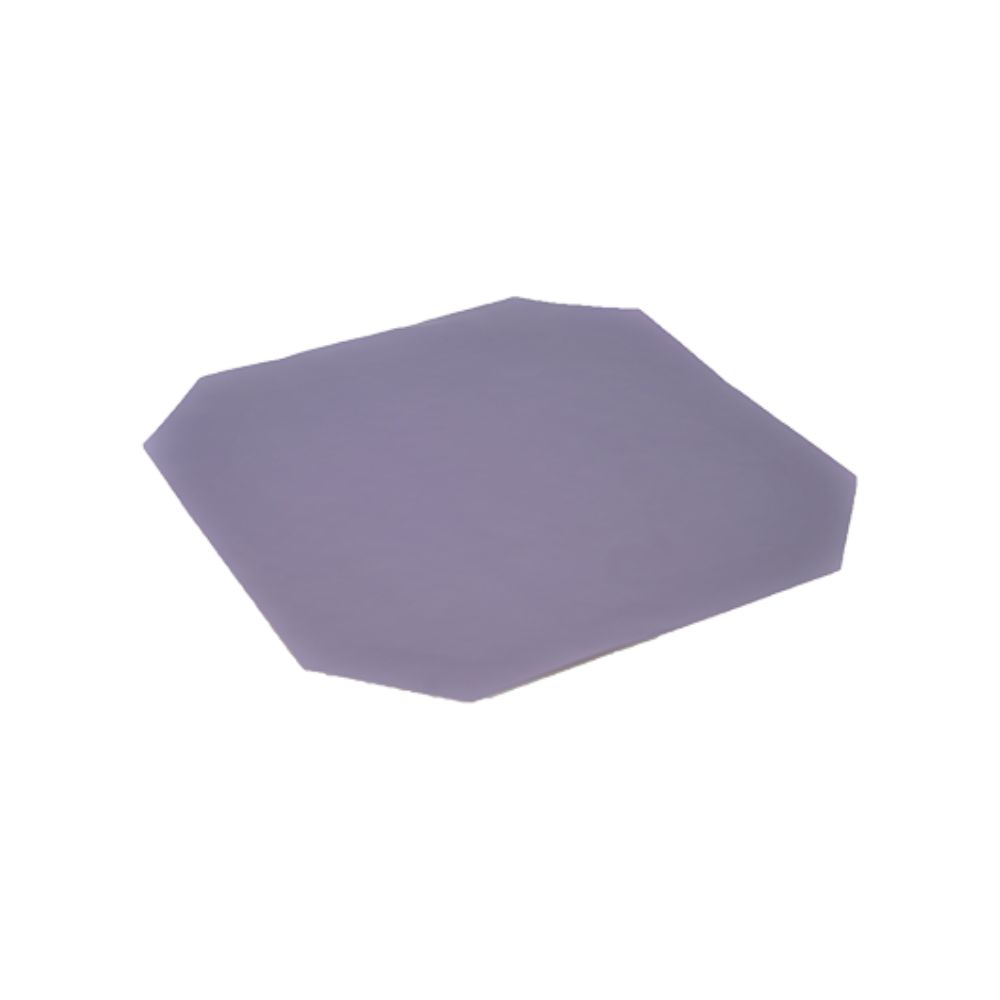

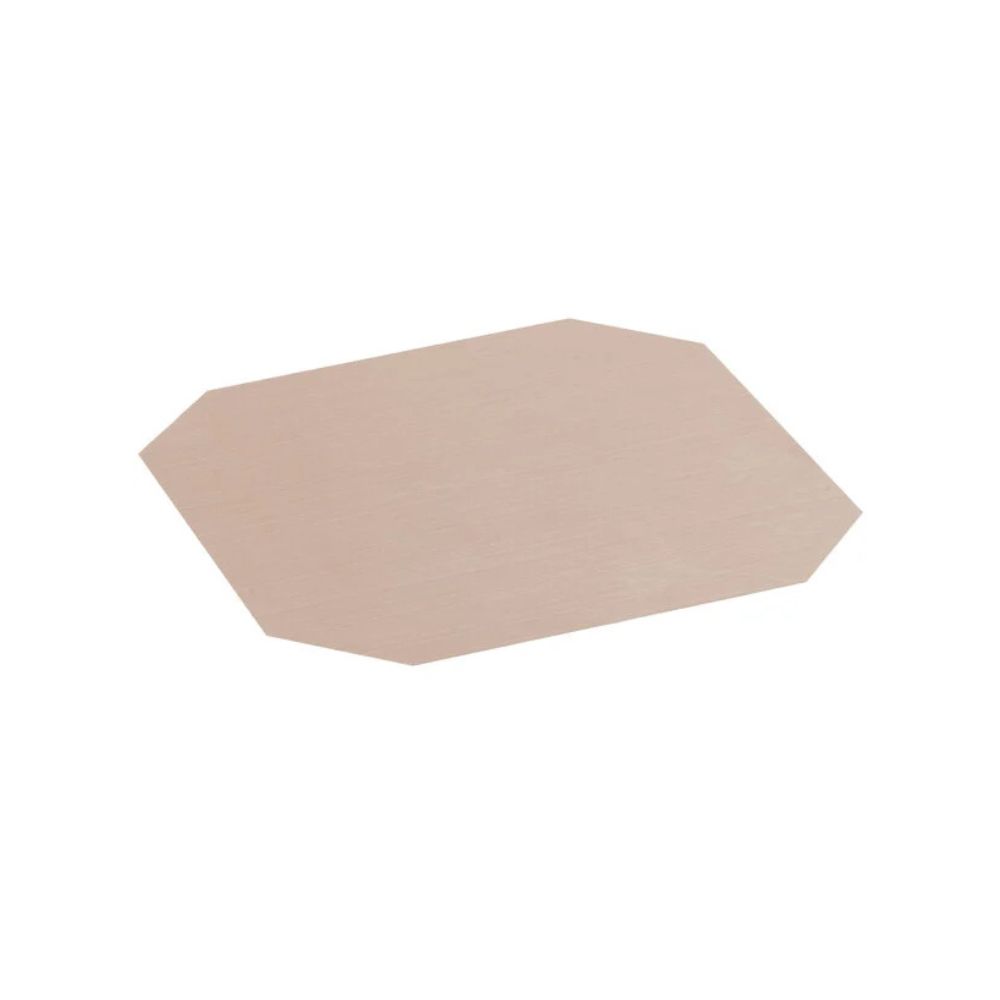

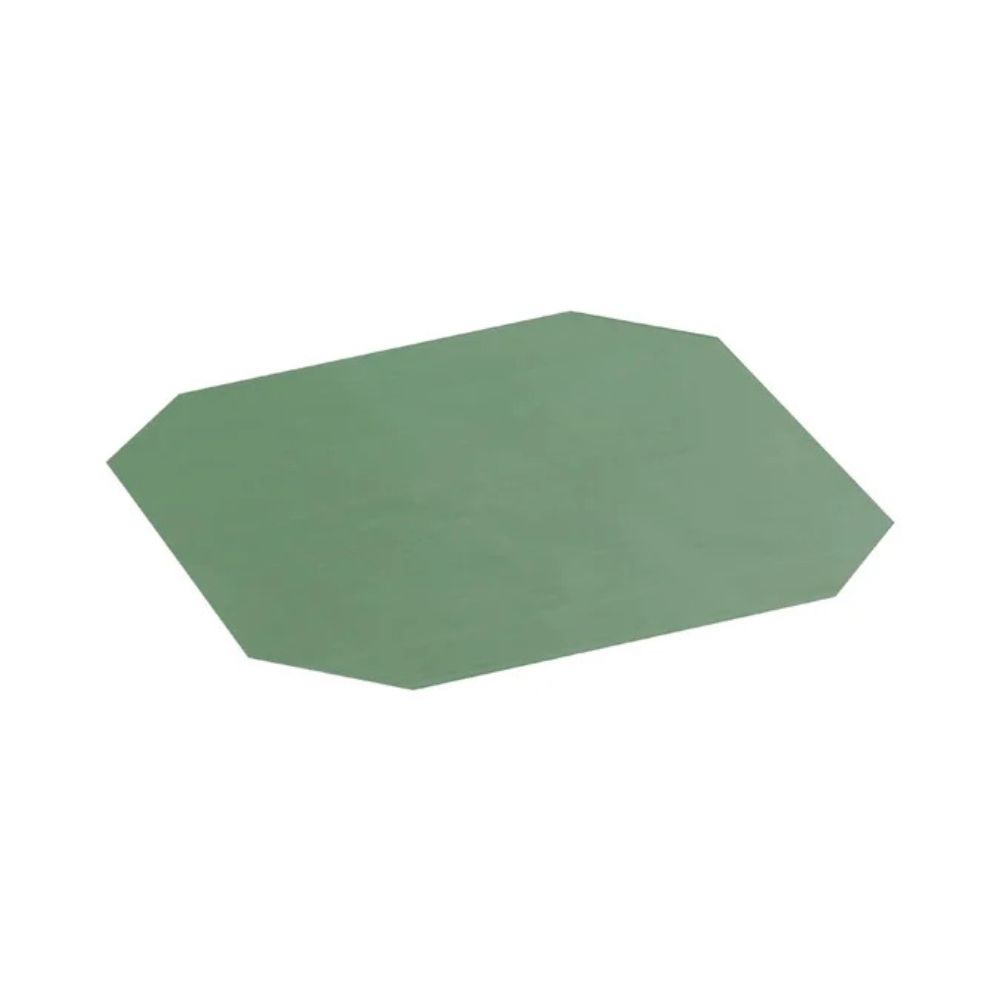

  • Cook plate liner
  • Solid base basket
  • Cleaning care package, consisting of:

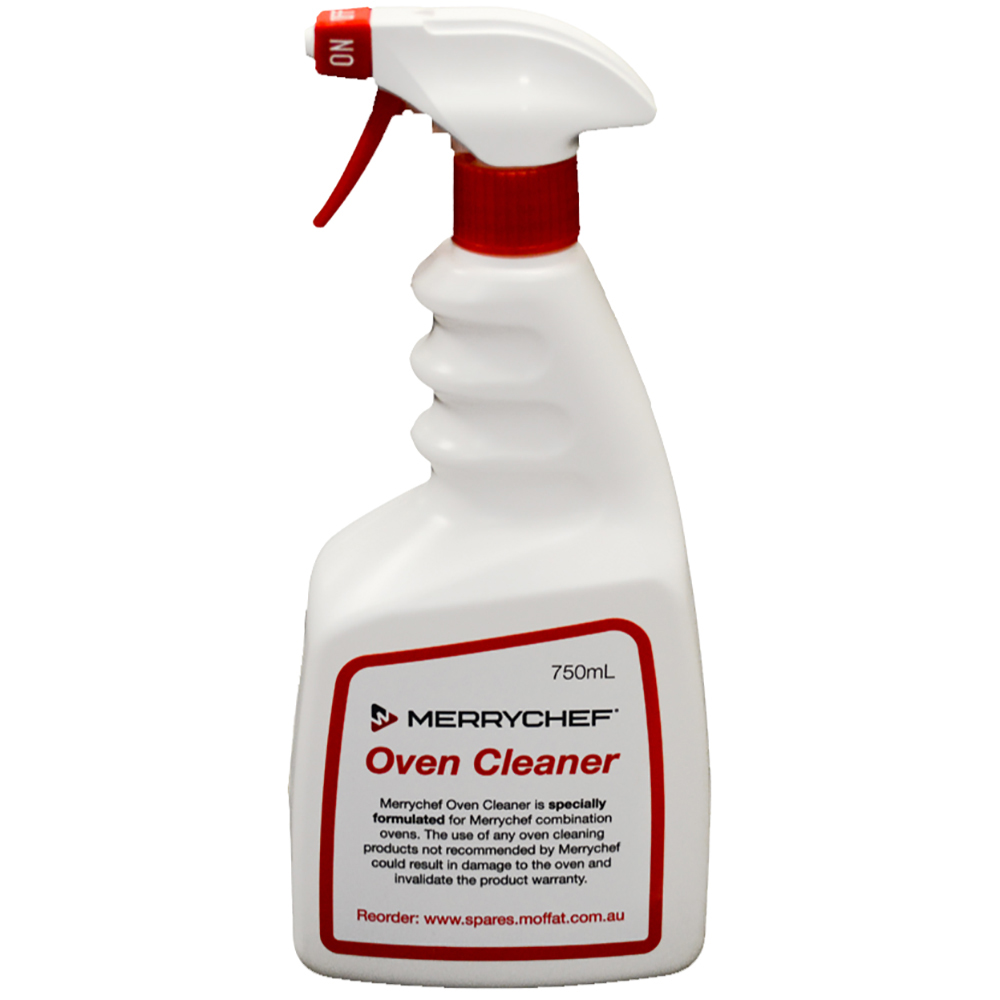

  • 1x oven cleaner (bottle)

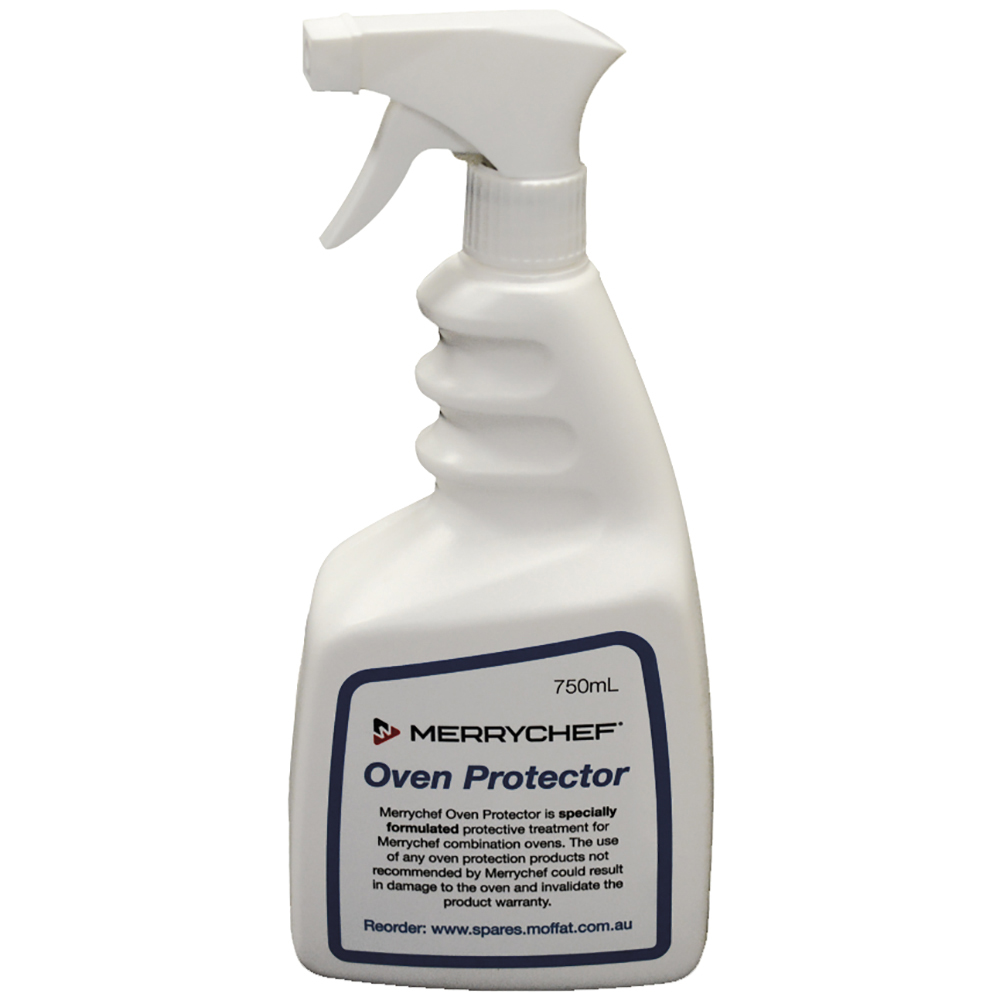

  • 1x oven protector (bottle)
• Accessories

  • Baskets
  • Cook plates
  • Cook plate liners
  • Paddles
  • Racks

Specifications

• Microwave Power

  • Microwave settings, off or 5-100% in 1% increments
  • Distribution system, rotating active antennae
• Convected Heat

  • Temperature settings OFF and from 100° to 260°C in 1°C steps
  • Distribution system, Tuned Impingement
• Dimensions

  • Width 407mm
  • Depth 538mm
  • Height 588mm
  • Weight 46kg
• Installation Requirements

  • Rear 0 mm
  • Right 0 mm
  • Left 0 mm
  • Top 50 mm
  • For precise installation instructions please refer to the units installation manual
• Electrical Supply

  • Single Phase Model
  • 240V, 50Hz (1P+N+E)
  • Rated power consumption 2.99 kW
  • Rated current 15A
  • All Merrychef ovens require a type D circuit breaker for all installations.
• Power Output Approx

  • Microwave 0.8 kW
  • Convected heat 2.2 kW
  • Combination mode 0.8** + 0.9 kW
    **This is the approximate microwave power output.
