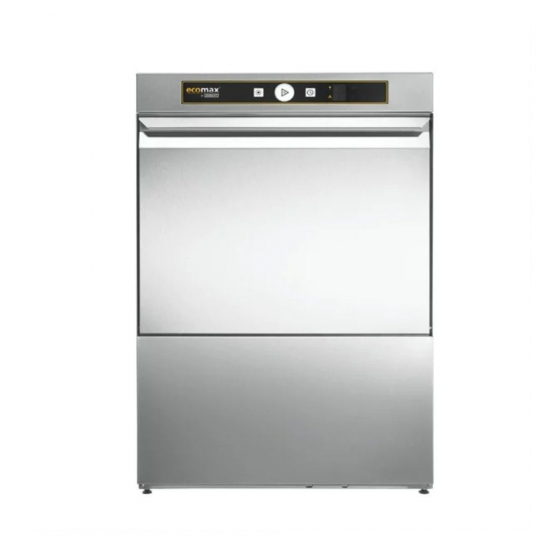

Hobart ECOMAX504-C Undercounter Dish/Glasswasher

The Hobart ECOMAX504-C Undercounter Dish/Glasswasher is a compact yet powerful solution designed for hospitality businesses needing efficient, hygienic, and space-saving warewashing. Ideal for cafés, restaurants, and bars, it features a usable chamber for larger items and operates with low rinse water consumption, making it cost-effective. With 3 cycle options plus a hygiene programme, it guarantees thorough cleaning every time. A rinse pressure pump ensures consistent results, even with variable water pressure, and it’s compatible with Hobart’s reverse osmosis system for spotless glassware. Easy to install and maintain, it’s a trusted choice for any commercial kitchen.

Features

• Versatile cycles: 60, 120, 180 sec + Hygiene cycle with Hygiene-Tab for deep clean
• Water-saving: Uses just 2.0 L of rinse water per cycle
• Smart design: 360mm loading height fits large plates, compact 820mm installation height
• Consistent performance: Rinse pressure pump maintains high wash standards under low pressure.
• Quiet & efficient: Double-skin door and chamber reduce heat loss and noise (62.5 dB).
• Easy to install: Supplied with plate rack, cutlery basket, fill & drain hoses, pumps, and 15A plug
• Tech-ready: USB connection for fast servicing, optional chemical refill signal

Specification

• Range: Ecomax
• Model Number: ECOMAX504-C
• Product Type: Undercounter Glasswasher
• Door Type: Bottom hinged drop down
• Colour: Silver
• Capacity: 25 Liter
• Dimensions:
  • Width: 576mm
  • Height: 820mm
  • Product Depth: 604mm
• Material: Stainless Steel
• Power Source: Electric
• Power Requirements: 15 AMPS
• Voltage: 240
