Product Description
Build your own food service line-up using standardised drop-in modules.

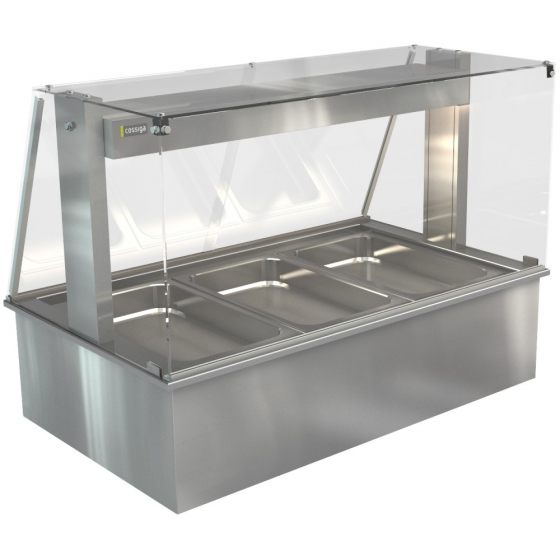

The Linear Series (LS) offers you easier ways to create flexible and great-looking food display cabinet line-ups. This range, which includes drop-in modular display wells and the new Linear Mobile Trolleys, has been designed to enable you to construct a tailored food service line-up.
Available in refrigerated or heated options, the Linear Series features a range of stylish sneezeguards ensuring a hygienic self-service environment.
Features
- Drop-in heated wells
- Auto Fill with wet elements
- Overhead halogen lights
- Full Square, Flat Top, Double Curve and Full Curve Glass are optional extras
- Electrical Power
- Electrical power cord 3000mm, 1 phase connection required.
- The unit can be hard-wired to an isolation switch or fitted with a suitable heavy-duty plug such as PDL 56 series or Commando style plug.
- Water Drainage
- Screw on stop cock valve drain pipe
- Ideally, drain connected to waste.
- Overflow flexible waste pipe 20mm dia. 1000 mm in length from the valve must be connected to waste.
- Gastro Pans
- Units supplied with 1/1 pans at 65mm deep, max pan depth is 100mm.
Specifications
- LSBM3
- No of pans - 3
- Length - 1145mm
- Depth - 690mm
- Height - 555mm
- Bench Cut out hole size - 1125 x 670
- Water fill - 57 litres
- Operating Current - 15 Amp
- Connection - 20 amp lead only
- Voltage - 240V
- LSBM4
- No of pans - 4
- Length - 1485mm
- Depth - 690mm
- Height - 555mm
- Bench Cut out hole size - 1465 x 670
- Water fill - 75 litres
- Operating Current - 20 Amp
- Connection - 30 amp lead only
- Voltage - 240V
- LSBM5
- No of pans - 5
- Length - 1825mm
- Depth - 690mm
- Height - 555mm
- Bench Cut out hole size - 1805 x 670
- Water fill - 93 litres
- Operating Current - 25 Amp
- Connection - 30 amp lead only
- Voltage - 240V
- LSBM6
- No of pans - 6
- Length - 2165mm
- Depth - 690mm
- Height - 555mm
- Bench Cut out hole size - 2145 x 670
- Water fill - 113 litres
- Operating Current - 30 Amp
- Connection - 40 amp lead only
- Voltage - 240V
Sneeze Guard Options
The sneeze guard has to be purchased in addition to the Bain Marie.
