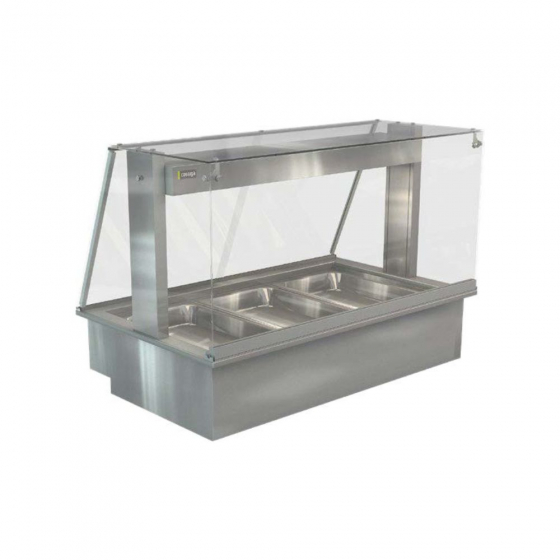

Cossiga Heated Display Cabinet LSBM-FS

The Cossiga Linear Series Bain Marie – Full Square Glass (LSBM-FS) is a premium heated display solution designed for hospitality environments that require flexibility, hygiene, and superior food presentation. Ideal for buffets, cafés, and commercial kitchens, this high-performance unit features dual-purpose wet and dry operation, allowing operators to adapt to a wide range of service requirements. Equipped with overhead ceramic heating pads and dry elements, it ensures consistent and even heat distribution to maintain optimal serving temperatures. The full square glass sneeze guard provides maximum visibility while protecting food, enhancing both presentation and hygiene.

Features

• Dual-purpose operation for wet or dry heat applications
• Auto-fill system for convenient water management in wet mode
• Overhead ceramic heating pads ensure even and consistent heat distribution.
• Integrated dry heating elements for flexible food holding
• Full square glass sneeze guard for maximum visibility and hygiene protection
• LED lighting enhances food presentation and customer appeal
• Supplied with full-size 1/1 gastronorm pans (65mm depth)
• Supports maximum pan depth up to 100mm for increased capacity
• Ideal for buffets, cafés, serveries, and commercial kitchens
• Designed for seamless integration into Linear Series counter systems
• Electrical Power:
  • Power cord length: 3000mm
  • Single-phase connection required
  • Unit must be hard-wired on-site to an isolation switch
• Water & Drainage:
  • Screw-on stopcock valve drain pipe for controlled drainage
  • Recommended connection to waste for efficient operation
  • Overflow flexible waste pipe: 19mm diameter, 1000mm length (must be connected to waste)

Specifications

• EDC268 - Cossiga LSBM3-FS Heated Display Cabinet
  • Dimensions
    • Length: 1145mm
    • Depth: 690mm
    • Height: 555mm
  • Pans: 3 x 1/1 65mm Gastro Pans
  • Cut Outs: 1120 x 635
  • Operating Current: 15 Amp
  • Voltage: 220-240V

• EDC269 - Cossiga LSBM4-FS Heated Display Cabinet
  • Dimensions
    • Length: 1485mm
    • Depth: 690mm
    • Height: 555mm
  • Pans: 4 x 1/1 65mm Gastro Pans
  • Cut Outs: 1460 x 635
  • Operating Current: 18.7 Amp
  • Voltage: 220-240V

• EDC270 - Cossiga LSBM5-FS Heated Display Cabinet
  • Dimensions
    • Length: 1825mm
    • Depth: 690mm
    • Height: 555mm
  • Pans: 5 x 1/1 65mm Gastro Pans
  • Cut Outs: 1800 x 635
  • Operating Current: 25 Amp
  • Voltage: 220-240V
• EDC271 - Cossiga LSBM6-FS Heated Display Cabinet
  • Dimensions
    • Length: 2165mm
    • Depth: 690mm
    • Height: 555mm
  • Pans: 6 x 1/1 65mm Gastro Pans
  • Cut Outs: 2140 x 635
  • Operating Current: 28.5 Amp
  • Voltage: 220-240V
