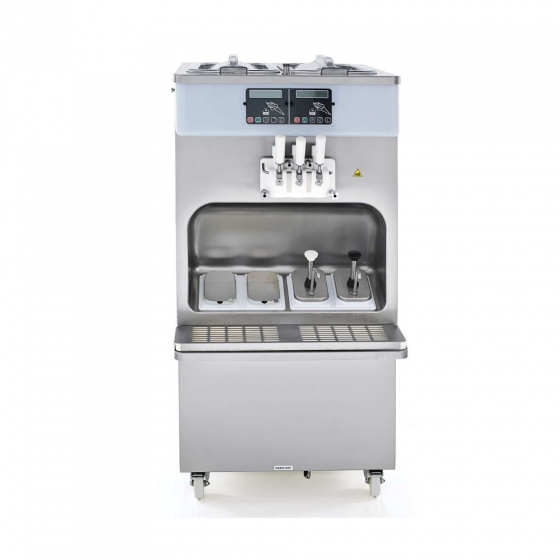

Carpigiani K503 SP P Soft Serve Machine

The Carpigiani K503 SP P Soft Serve Machine is a high-capacity floor-standing twin-twist soft serve machine designed for busy ice cream shops, quick-service restaurants, dessert bars, and high-volume foodservice operations. The machine delivers two individual flavours plus a combined twist option, producing exceptionally smooth and creamy soft serve with adjustable overrun up to 80%.

Equipped with Carpigiani's Hard-O-Tronic® consistency control system, the K503 SP P allows operators to easily adjust and maintain the desired product consistency based on the mix being used. With independent refrigeration systems, dual motors, and dual compressors, each side of the machine can operate independently, providing maximum flexibility and production efficiency.

The machine also features Carpigiani's advanced self-pasteurisation system, allowing cleaning intervals of up to 42 days between wash cycles, subject to local health regulations. Combined with interactive controls, automatic cleaning assistance, and energy-efficient refrigeration technology.

Features

Floor-standing twin-twist soft serve machine

Two flavours plus one twist flavour output

• Pump-fed system with adjustable overrun from 40% to 80%
• Hard-O-Tronic® electronic consistency control
• Self-pasteurisation system
• Independent refrigeration systems for each freezing cylinder
• Dual motors and dual compressors
• Ability to operate one side independently
• 20L hopper capacity per side
• Interactive display with machine diagnostics and operating information
• Removable pump shaft for easier cleaning and improved hygiene
• Tank agitators help prevent product separation and reduce foam.
• High-efficiency stainless steel beaters with double spirals
• Adjustable product flow control
• Direct expansion cooling cylinders for increased efficiency and reduced waste
• The defrost system simplifies cleaning procedures.
• Air-cooled operation

Specifications

• Brand: Carpigiani
• Model: K503 SP P
• Product Type: Twin Twist Soft Serve Machine
• Configuration: Pump Feed
• Flavour Output: 2 + 1 Twist
• Production Capacity: 500 + 500 × 75g portions per hour
• Hopper Capacity: 20L per hopper
• Cooling System: Air Cooled
• Power: 5200W
• Voltage: 400V
• Frequency: 50Hz
• Installation: Hardwired
• Refrigerant: R455A
• Dimensions: 904mm (W) × 723mm (D) × 1098mm (H)
• Weight: 410 kg
• Compressors: 2
• Motors: 2
