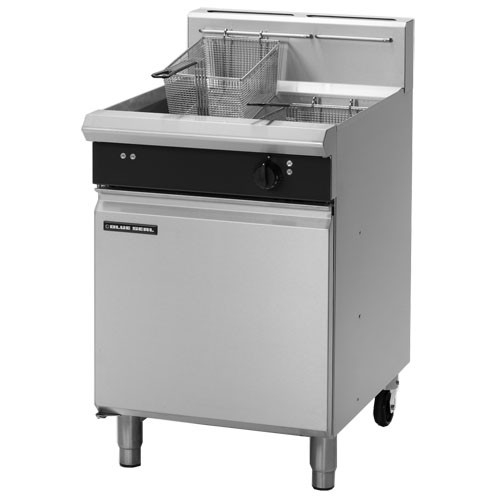

Blue Seal GT60HPO High Output Vee-Ray Fryer
Product Description
The Blue Seal Evolution Series is the culmination of a process in which the Blue Seal range has been completely re-designed. The result is an expanded, more functional range of commercial kitchen equipment offering more configuration options and blistering performance. Improved streamlining creates a continuous workspace when units are placed in a line-up even when you are forced to push culinary frontiers from the confines of a small kitchen. When it comes to selecting tops and bottoms, the Blue Seal Evolution Series offers a level of choice not seen before. With a bigger range of equipment, you have even more flexibility to configure your kitchen exactly the way you want it.
Blue Seal has long been recognised for the quality and performance of its commercial deep fryers. The Blue Seal Evolution Series takes this a stage further with a sleeker, more streamlined deep fryer range. Gas units feature Blue Seal’s unique Vee Ray technology, incorporating patented infra-red burners for industry leading frying output and recovery.
All commercial deep fryers within the range are available with either mechanical or digital controls. Digital control models offer precise temperature control, three product timers, as well as time and temperature digital display. Twin pan models have independent digital controls for each pan and six product timers.
Southern Hospitality Ltd recommends that customers who wish to purchase items such as this consult with one of our friendly sales reps, to iron out all of the fine detail that can accompany such purchases, and ensure that you receive the correct model and specifications for your particular needs.
If you would like to view these fryers, please contact us at 0800 503 335 or [email protected].
Blue Seal Evolution Series GT60-HPO - 600mm Gas Fryer
- 600mm single pan gas fryer
- 31 litre oil capacity
- 50kg/hr production rate
- 140 MJ/hr continuous production single pan fryer
- 2 x 70MJ/hr infrared burners
- Supplied with 2 large or 3 standard basket capacity
- Mechanical controls
- High Power Output infra-red burner system
- Easy clean stainless steel open pan with 10 year limited warranty
- Large capacity cool zone
- 32mm (1 1/4”) drain valve
- Rear rollers
- Stainless steel exterior
- Easy service
- Fully modular
- Overall Construction
- Stainless steel pan with 10 year limited warranty
- Bull nose welded 1.5mm 304 stainless steel
- Splashback 1.2mm 304 stainless steel
- Side panels 1.2mm 304 stainless steel
- Double skin door with 0.9mm 304 stainless exterior
- Vitreous enamelled control panel
- 32mm (1 1/4”) drain valve
- 63mm dia. heavy-duty 1.2mm 304 stainless steel adjustable legs at front and two rollers at rear
- 2 large standard baskets and stainless steel lid supplied standard
- Controls – Burner System
- Electronic thermostat
- Large easy use control with easy view scale
- Thermostat range 90 – 195°C
- Over-temperature safety cut-out
- Full electronic ignition system
- Two 70MJ/hr power infra-red burners
- Independent LH and RH burner systems
- Lock-out alarm indicators on front panel
- Cleaning and Servicing
- Open stainless steel pans for easy clean
- Easy clean basket support bar
- 32mm (1 1/4”) drain valve for effective draining
- Easy clean stainless steel exterior
- Access to all parts from front of unit
Specifications
- Production rate: 50kg/hr
- Pan Size
- Width 515mm
- Length 380mm
- Oil frying depth 95mm
- Oil capacity 31L (46.5lbs shortening)
- Baskets
- 2 chrome plated large wire baskets
- 210mm W x 335mm D x 145mm H
- Optional 3 chrome plated standard wire baskets
- 145mm W x 335mm D x 145mm H
- Stainless steel perforated basket support plate
- Burners: 2 x 70MJ/hr power infra-red burners
- Gas Power: 140MJ/hr, 39kW
- Gas connection
- R 3/4 (BSP) male
- Optional rear connection
- Electrical Connection
- 230-240 Vac, 1P+N+E, 50/60Hz, 0.5A
- 3 pin 10A plug cordset fitted
- Dimensions
- Width 600mm
- Depth 812mm
- Height 915mm
- Incl. splashback 1085mm
- Nett weight: 100kg
- Gas types
- Available in Natural gas and LP gas, please specify when ordering
- Units supplied complete with gas type conversion kits
- Other gas types on request
