Blue Seal Griddles

Blue Seal GP513 - 450mm Gas Griddle

Starting from $4,373.60 plus GST


free shipping
Free shipping for Online Orders over $150 + gst*
warranty-
12 Months Parts & Labour Warranty

Product Description

The Blue Seal Evolution Series is the culmination of a process in which the Blue Seal range has been completely re-designed. The result is an expanded, more functional range of commercial kitchen equipment offering more configuration options and blistering performance. Improved streamlining creates a continuous workspace when units are placed in a line-up, the depth gives plenty of cooking area, even when you are forced to push culinary frontiers from the confines of a small kitchen.

With solid and seamless weld construction all heavy-duty griddles have a standard 20mm plate for maximum heat retention and distribution. They are thermostatically controlled for accurate temperature setting, and are available in smooth or ribbed machine finished mild steel plate. A mirror chrome surface option, also available as smooth or ribbed, minimises heat loss by trapping more heat on the cooking surface.

Southern Hospitality Ltd recommends that customers who wish to purchase items such as this consult with one of our friendly sales reps, to iron out all of the fine detail that can accompany such purchases, and ensure that you receive the correct model and specifications for your particular needs.

If you would like to view this griddle, please contact us at 0800 503 335 or [email protected].

Blue Seal Evolution Series GP513-B / GP513-LS / GP513-CB - 450mm Gas Griddle - Product Features

  • 450mm gas griddle
  • 40 MJ/hr thermostatic burner system
  • Top weld sealed plates
  • Mirror or ribbed plate options
  • 20mm thick griddle plate
  • Heavy-duty thermostatic gas griddle
  • Rear Rollers
  • Full pilot and flame failure protection with piezo ignition
  • Easy clean, installation and service

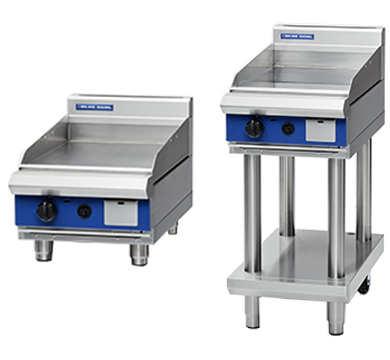

  • GP13-B - 450mm Gas Griddle - Bench Model
  • GP513-LS - 450mm Gas Griddle - Leg Stand
  • GP513-CB - 450mm Gas Griddle - Cabinet Base

Features

  • Overall Construction
    • 20mm thick machined top plates standard
    • Optional ribbed plate sections
    • Optional mirror finish hard chrome plates
    • 2.5mm thick 304 stainless steel splash guards sides and rear
    • 40MJ single 3 bar even heat burner with single thermostatic control
    • Full pilot and flame failure protection with piezo ignition
    • Welded hob surround with 1.5mm 304 stainless steel bull nose
    • Side panels 1.2mm 304 stainless steel
    • Splashback 1.2mm 304 stainless steel
    • Vitreous enamelled control panel
    • Stainless steel grease drawer
    • Overlapping finish at front and rear of plate for easy clean
  • Leg Stand
    • Fully modular for matched suite finish
    • Framed top for connection to Griddle
    • 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with two adjustable feet at front and two rollers at rear
    • Fully modular framed stand shelf with 0.9mm 304 stainless steel finish
    • Quick assembly design
  • Bench Mount
    • Four 63mm dia. heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet.
    • Adjustable height 80mm – 105mm
  • Cabinet Base
    • Fully modular for matched suite finish
    • Double skin 0.9mm 304 stainless steel interior and exterior
    • GN 1/1 4 position racking
    • 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with two adjustable feet at front and two rollers at rear
  • Controls
    • 90-300°C thermostat
    • Large easy use control knob - heat resistant reinforced
    • Easy view control settings on knob
    • Flame failure pilot burner
    • Piezo ignition to pilot burner
    • Over-temperature safety cut-out
  • Cleaning and Servicing
    • All models with easy clean stainless steel external finish
    • Plate is finished front and rear with overlap construction to remove cleaning traps
    • Control service and gas conversion through front of unit
    • Burner service requires plate removal

Specifications

  • Burner: 3 bar chromed steel burner with pilot, flame failure and piezo ignition
  • Gas power: 40MJ/hr, 11.1kW
  • Cooking surface: 442mm x 530mm, 2343cm2
  • Gas connection
    • R 3/4 (BSP) male
    • All units supplied with Natural and LP gas regulator
  • Dimensions
    • Bench Model
      • Weight 77kg
      • Width 450mm
      • Depth 812mm
      • Height 315mm
      • Incl. splashback 485mm
    • Leg Stand Model
      • Weight 90kg
      • Width 450mm
      • Depth 812mm
      • Height 915mm
      • Incl. splashback 1085mm
    • Cabinet Base
      • Weight 90kg
      • Width 450mm
      • Depth 812mm
      • Height 915mm
      • Incl. splashback 1085mm
