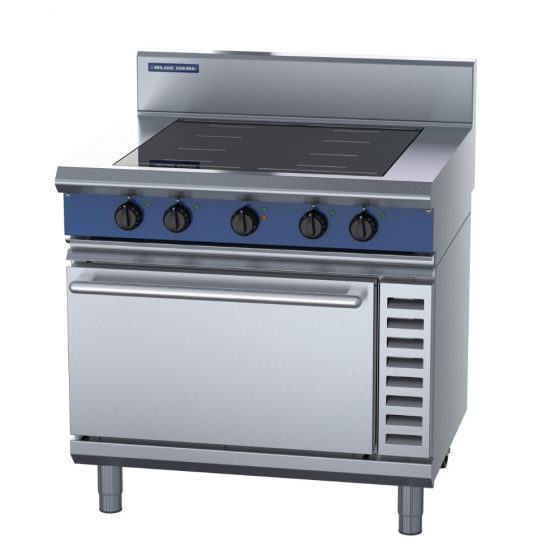

Blue Seal Evolution IN54F Induction Range Convection Oven

Blue Seal Evolution IN54F Induction Range Convection Oven, made with galvanized steel and high-quality stainless steel, ensures longevity and easy maintenance. The cooktop features a ceramic glass surface with induction air cooling for efficient heat distribution, while the oven offers ample space and versatile rack positions for your dishes.

This is a complete solution for a commercial kitchen, designed for simplicity and ease of use. With its four ceramic glass cooktops and induction air cooling for efficient heat distribution, it provides ample space and versatile rack positions for your dishes. Precise control over your cooking is achieved with different power settings for each induction zone and a handy thermostat for the oven, making it a perfect addition to any commercial kitchen.

Features

Induction Cooktop: With 4 x 5.0kW full-area induction zones with 6mm thick ceramic glass cooking surface this heat up quickly and precisely. Automatic pan detection optimises energy efficiency.

Convection Oven: With two fans and a thermostat that can be set between 50°C and 320°C, the oven provides even heat distribution, allowing for various cooking methods. It also includes 6.1kW heating elements for consistent cooking.

Durable Construction: With fully welded and vitreous enamelled liner and a heavy-duty stainless-steel exterior and galvanized steel chassis ensure durability and easy cleaning.

Dimensions and Capacity: With dimensions of 900mm width, 812mm depth, and 1085mm height, it fits well in any commercial kitchen.

Flexibility: GN 2/1 capacity with 5-position racking allows cooking a wide range of dishes. Maintenance is made easy with its removable wire racks and enamel-coated spill tray.

Mobility and Installation: Features 63mm-diameter heavy-duty stainless-steel legs with two adjustable feet at the front and two rear rollers for easy mobility. The fully modular design allows for simple installation and servicing.

Overall Construction

• Galvanized steel chassis
• Welded hob with 2.0mm 304 stainless steel top
• Splashback and hob sides 1.2mm 304 stainless steel
• Front panels and oven sides 0.9mm 304 stainless steel
• Vitreous enamelled control panel
• 63mm dia. heavy-duty 1.2mm 304 stainless steel adjustable legs at front and two rollers at rear

Cooktop

• 6mm thick ceramic glass 650mm x 650mm
• Induction air cooling with front access air filter
• Front panels 0.9mm stainless steel
• Fan cooled induction cooktop oven heat protection with front exhaust

Oven

• Fully welded and vitreous enamelled oven liner
• GN 2/1 capacity with 5 position racking
• Heavy-duty easy remove heavy wire chrome rack supports
• Vitreous enamelled removable oven spill tray
• 6.0kW heating elements
• 2 fan motors
• Drop down door
• 0.9mm 304 stainless steel door outer
• 1.0mm vitreous enamelled door inner
• 38mm high density fibreglass insulated
• Supplied with two chrome wire oven racks

Induction Cooktop Controls

• Variable power controls for each induction zone
• Heating ON indicator lights with pan detection indication
• Error mode indicator

Oven Controls

• 50-320°C thermostatic control
• Indicator lights for power and heating
• Oven fans and heating automatic off when door open

Cleaning and Servicing

• All models with easy clean stainless steel external finish
• Fully sealed cooking surface
• Removable for cleaning cooling air filter
• Removable for cleaning exhaust screen
• Removable oven racking and spill tray
• Easy clean vitreous enamel oven and door inner
• Access to all service parts from front of unit

Specifications

Cooktop

4 x 5.0kW Full Area Induction zones

Oven

• 2 x 2kW oven fan elements
• 1 x 2kW oven bottom element
• 2 x oven circulation fan motors

Oven Dimension

• Width 665mm
• Depth 560mm
• Height 350mm
• Rack size 655mm x 530mm
• Rack positions 5

Electrical requirements

• 26.1kW, 400-415V, 50/60Hz, 3P+N+E
• 36.3A / phase

Electrical connection

• 130mm from RH side, 32mm from rear, and 318mm from floor

Dimensions

• Width 900mm
• Depth 812mm
• Height 1085mm
• Incl. splashback 1130mm
