Blue Seal Ranges

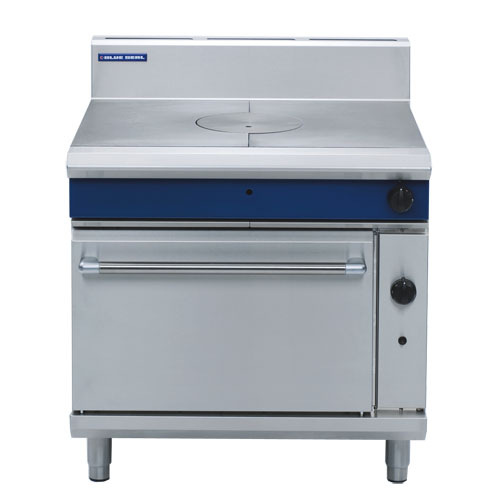

Blue Seal G570 Gas Target Top with Gas Static Oven

SKU
EMB167
Was $13,640.00 Special Price $10,502.80 plus GST

Shipped from Supplier
free shipping
Free shipping for Online Orders over $150 + gst*
delivery estimate
Click here to contact us for delivery time
no returns No Returns This is a special order item and may not be able to be returned.
warranty-
12 Months Parts & Labour Warranty

Rent from $133.30 per week

price shown excl. GST

APPLY FOR FINANCE

Product Description

The Blue Seal Evolution Series is the culmination of a process in which the Blue Seal range has been completely re-designed. The result is an expanded, more functional range of commercial kitchen equipment offering more configuration options and blistering performance. Improved streamlining creates a continuous workspace when units are placed in a line-up, the depth gives plenty of cooking area, even when you are forced to push culinary frontiers from the confines of a small kitchen.

Blue Seal Evolution Series 900mm target tops come as stand-alone hobs, or with a choice of four base units – cabinet base, leg stand, refrigeration base, or oven base (static/convection, gas/electric). A high output, dual ring cast-iron burner enables the super heavy-duty Target Top castings to deliver outstanding heat control and recovery. A burner box lined with 50mm refractory ceramic blocks provides excellent thermal efficiency.

Southern Hospitality Ltd recommends that customers who wish to purchase items such as this consult with one of our friendly sales reps, to iron out all of the fine detail that can accompany such purchases, and ensure that you receive the correct model and specifications for your particular needs.

If you would like to view this product, please contact us at 0800 503 335 or [email protected].

Blue Seal Evolution Series G570 - 900mm Gas Target Top Static Oven Range - Product Features

  • 900mm gas target top oven range
  • 45MJ/hr dual ring cast iron burner
  • 2/1 GN gas static oven
  • Heavy-duty cast iron top with removable centre ring
  • Matched modular height machined top for seamless work surface
  • Stainless steel exterior
  • High output dual ring cast iron burner
  • Flame failure protection and continuous pilot burner
  • Drop down door with welded frame
  • Fully welded and vitreous enamelled oven liner
  • Cool touch stainless steel door handle
  • Heavy-duty reinforced control knobs
  • Adjustable feet and 2 additional rollers
  • Easy clean, installation and service

Features

  • Overall Construction
    • Galvanized steel chassis
    • Welded hob surround with 1.5mm 304 stainless steel bull nose
    • Hob sides 1.2mm 304 stainless steel
    • Splashback 1.2mm 304 stainless steel
    • Front panels and oven sides 0.9mm 304 stainless steel
    • Vitreous enamelled hob control panel
    • 63mm dia. heavy-duty 1.2mm 304 stainless steel adjustable legs at front and two rollers at rear
  • Target top
    • 3 piece heavy-duty cast iron top with fully machined surface
    • Top plates and removable centre with integral spill protection design
    • Cast top reinforced with integral heat fins for heat zone definition
    • 45MJ dual ring cast iron burner with single control
    • Full pilot and flame failure protection
    • 50mm thick refractory brick lined burner box for high heat retention
    • 2 stainless steel spill trays
    • Supplied with heavy-duty centre casting removal tool
  • Oven
    • Fully welded and vitreous enamelled oven liner
    • GN 2/1 capacity with 4 position racking
    • Heavy-duty easy remove heavy wire chrome rack supports
    • Cast iron even heat oven sole plate
    • 30MJ oven burner
    • Pilot and flame failure with piezo ignition
    • Drop down door
    • 0.9mm 304 stainless steel door outer
    • 1.0mm vitreous enamelled door inner
    • High density fibreglass insulated
    • Supplied with two chrome wire oven racks
  • Controls
    • Controls
      • Large easy use control knobs - heat resistant reinforced
      • Easy view control settings on knobs
    • Target top
      • Variable high to low burner control
      • Single control knob for burner and pilot system
      • Flame failure pilot burner
      • Manual pilot ignition for reliable operation
    • Oven
      • 80-300°C thermostatic control
      • Piezo ignition to pilot burner
      • Flame failure
  • Cleaning and Servicing
    • Removable oven racking and sole plate
    • Easy clean vitreous enamel oven and door inner
    • Easy clean stainless steel exterior
    • Target Top fully serviceable from front of unit
    • Bottom sill removable for burner and pilot access
    • Access to all parts from front of unit

Specifications

  • Burners
    • 45MJ dual ring cast iron - Target Top
    • 30MJ tubular - Oven
  • Gas power: 75MJ/hr, 20.8kW
  • Target Top
    • Cooking surface 900mm x 625mm, 5625cm2
    • Centre 280mm diameter
  • Oven Dimensions
    • Width 665mm
    • Depth 590mm
    • Height 385mm
    • Rack size 660mm x 540mm
    • Rack positions 4
  • Gas connection
    • R 3/4 (BSP) male
    • Optional underside connection, please specify when ordering
    • All units supplied with Natural and LP gas regulator
  • Dimensions
    • Width 900mm
    • Depth 812mm
    • Height 915mm
    • Incl. splashback 1085mm
