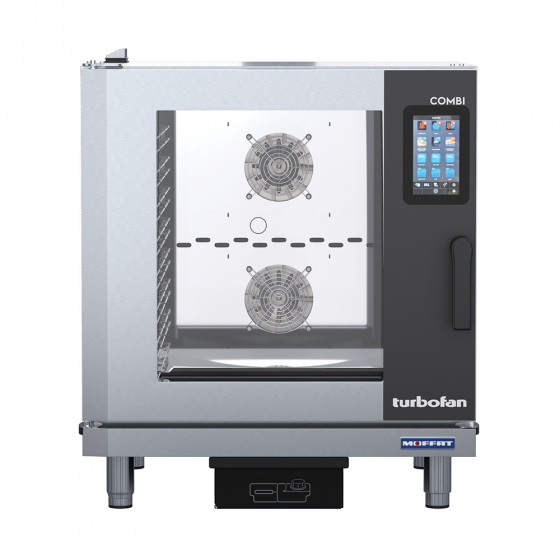

Turbofan EC40T7 Touch Electric Combi Oven

The Turbofan EC40T7 Touch Electric Combi Oven is a high-performance, space-saving solution for busy commercial kitchens, offering advanced cooking technology with exceptional flexibility. This powerful 12.5kW oven ensures efficiency with MULTILEVEL PLUS functionality to double production on each shelf. Its Autoclima® system maintains the perfect cooking environment, while the 7-inch capacitive touchscreen allows intuitive control and programmable cooking sequences. Features like ECOVAPOR, ECOSPEED, and auto-reverse fan guarantee precision and even heat distribution. The LCS automatic cleaning system, Wi-Fi connectivity, and USB compatibility make operation and maintenance simple and reliable.

Features

• Capacity: Holds 7 x 1/1 GN trays or 7 x 600 x 400 mm trays with 70mm spacing.
• Cooking Modes: Manual convection (30°C–260°C), steam (30°C–130°C), and combi (30°C–260°C)
• Smart Operation: ICS automatic recipe system, programmable modes, and interactive multi-level cooking
• Energy Efficiency: Includes ECOVAPOR, ECOSPEED, and low-consumption LED lighting.
• Easy Maintenance: LCS cleaning system, USB for HACCP data, and Wi-Fi for software updates
• Durability & Safety: Built from AISI 304 stainless steel with double-glazed, ventilated doors and folding interior glass for easy cleaning.

Specifications

         Dimensions

• Width: 777mm
• Depth: 744mm
• Height: 887mm
• Weight: 90kg

        Packed Dimensions

•  Width: 910mm
•  Depth: 865mm
•  Height: 1050mm
•  Weight: 102kg
•  Volume: 0.51 m³

         Shelves

• 1/1 GN: 7
• Shelf Spacings: 70mm

Electrical Requirements

• 400-415V, 50Hz, 3P+N+E, 12.5kW, 18A
• Water Connection Requirements

Water Supply

• 2 x R3/4 connections
• Cold Water (Softened water optional)
• Flow pressure 200-500 kPa
• Shut off valve with back flow prevention

Water Quality

• Total hardness: 60-90 ppm
• pH: > 7.5
• Cl-(chloride): max. 30 mg/l
• CI2 (free chlorine): max. 0.1 mg / l
• Fe (iron): max. 0.1 mg / l
• NH2CI: (monochloramine) max. 0.2 mg /l
• Cold water temperature: max. 30° C
• Electrical conductivity: 50 - 200 uS

Drain

• Funnel waste trap/turndish required
• 40 mm outlet
• Minimum fall/slope for waste 4°
•  Drain must be outside oven perimeter
