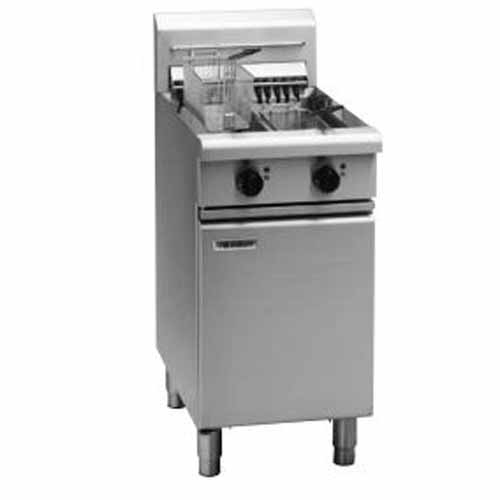

Waldorf FN8224E 450mm Electric Fryer Twin Pan

was $7,200.00

$5,544.00 plus GST

Availability: In stock

Click here to contact us for delivery time

The Waldorf range now offers two defining series with two distinct differences; the Waldorf 800 series continues the tradition of bulletproof performance and dependability with a range of European inspired equipment that re-defines how the ultimate kitchen should be.

Waldorf deep fryers have long set the benchmark for durability, speed and economy. The Waldorf 800 series builds on this tradition with a re-designed range of deep fryers available in 450 or 600mm single or twin pan versions.

All commercial deep fryers are available with either mechanical or digital controls. Digital control models offer precise temperature control, three product timers, as well as time and temperature digital display. Twin pan models have independent digital controls for each pan and six product timers.

Southern Hospitality Ltd recommends that customers who wish to purchase items such as this consult with one of our friendly sales reps, to iron out all of the fine detail that can accompany such purchases, and ensure that you receive the correct model and specifications for your particular needs.

If you would like to view these fryers, please contact us at 0800 503 335 or

Waldorf 800 Series FN8224E - 450mm Electric Fryer

  • 450mm single pan electric fryer
  • 12 litre oil capacity
  • 31kg/hr production rate
  • 3 x 2.83kW stainless steel heating elements
  • 17kW high performance single pan fryer
  • Easy clean stainless steel open pan with 10 year limited warranty
  • 12L oil capacity
  • 25mm (1") drain valve
  • Stainless steel exterior
  • Easy service
  • Fully modular
  • Low back model (FNL) available
  • Mechanical controls
  • Supplied with 2 standard baskets
  • Overall Construction
    • Stainless steel pan with 10 year limited warranty
    • Bull nose welded 1.5mm 304 stainless steel
    • Splashback 1.5mm 304 stainless steel
    • Side panels 1.2mm 304 stainless steel
    • Double skin door with 0.9mm 304 stainless exterior
    • Hinge out counterbalanced heating elements
    • 25mm (1 ") drain valves
    • 150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel with adjustable feet
    • 2 baskets and stainless steel lid supplied standard
  • Controls - Burner System
    • Mechanical thermostats
    • Thermostatrange 90-200˚C
    • Large easy use controls with easy view scale
    • Fail-safe over-temperature safety cut-outs
    • Element tilt switch for heating cut-out on element lift
    • Indicator lights for power and heating (per pan)
  • Cleaning and Servicing
    • Open stainless steel pans for easy clean
    • Easy clean basket support bar
    • 25mm (1") drain valve for effective draining
    • Easy clean stainless steel exterior
    • Access to all parts from front of unit


  • Production rate: 31kg/hr
  • Pan Size
    • Oil capacity 12L (24lbs shortening)
    • Width 175mm
    • Length 380mm
    • Oil frying depth 95mm
  • Baskets
    • 2 chrome plated wire baskets
    • 140mm W x 335mm D x 145mm H
  • Elements: 3 x 2.83kW stainless steel heating elements
  • Electrical requirements
    • 17kW, 400-415Vac, 50/60hz, 3P+N+E
    • L1 23.6A
    • L2 23.6A
    • L3 23.6A
  • Electrical Connection
    • 62mm from RH side, 365mm from rear, and 440mm from floor
  • Dimensions
    • Width 450mm
    • Depth 805mm
    • Height 915mm
    • Incl. splashback 1130mm
    • Incl. low back 1085mm
  • Nett weight: 74kg
