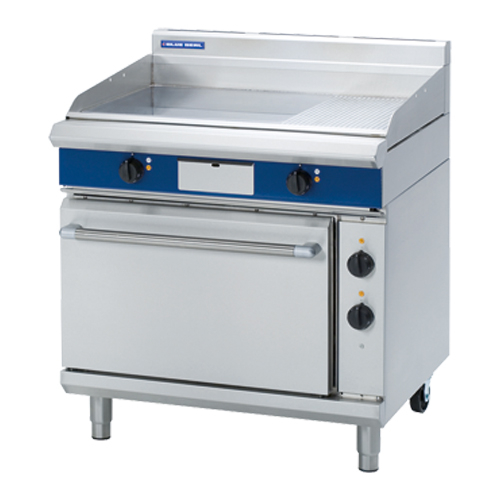

Blue Seal EP506 Electric Griddle with Electric Static Oven
Product Description
The Blue Seal Evolution Series is the culmination of a process in which the Blue Seal range has been completely re-designed. The result is an expanded, more functional range of commercial kitchen equipment offering more configuration options and blistering performance. Improved streamlining creates a continuous workspace when units are placed in a line-up, the depth gives plenty of cooking area, even when you are forced to push culinary frontiers from the confines of a small kitchen.
With solid and seamless weld construction all heavy-duty griddles have a standard 20mm plate for maximum heat retention and distribution. They are thermostatically controlled for accurate temperature setting, and are available in smooth or ribbed machine finished mild steel plate. A mirror chrome surface option, also available as smooth or ribbed, minimises heat loss by trapping more heat on the cooking surface.
Southern Hospitality Ltd recommends that customers who wish to purchase items such as this consult with one of our friendly sales reps, to iron out all of the fine detail that can accompany such purchases, and ensure that you receive the correct model and specifications for your particular needs.
If you would like to view this griddle, please contact us at 0800 503 335 or [email protected].
Blue Seal Evolution Series EP506 - 900mm Electric Griddle Static Oven Range
- 900mm electric griddle oven range
- 2/1 GN electric static oven
- Mirror chromed plate options
- 12kW griddle plate heating elements
- Separate left and right heat zones
- Heavy-duty stainless steel finish
- Heavy-duty reinforced control knobs
- Heavy-duty thermostatic electric griddle
- 20mm thick griddle plate
- Top weld sealed plates
- Drop down door with welded frame
- Fully welded and vitreous enamelled oven liner
- Cool touch stainless steel door handle
- Adjustable feet and 2 additional rollers
- Ribbed plate options
- Easy clean, installation and service
FEATURES
- Overall Construction
- Galvanized steel chassis
- Welded hob surround with 1.5mm 304 stainless steel bull nose
- Hob sides 1.2mm 304 stainless steel
- Splashback 1.2mm 304 stainless steel
- Front panels and oven sides 0.9mm 304 stainless steel
- Vitreous enamelled hob control panel
- 63mm dia. heavy-duty 1.2mm 304 stainless steel adjustable legs at front and two rollers at rear
- Griddle
- 20mm thick machined top plates standard
- Optional ribbed plate sections
- Optional mirror finish hard chrome plates
- 12kW heating elements
- 2.5mm thick 304 stainless steel splash guards sides and rear
- 2.5mm thick grease channel
- Dual thermostatic control zones
- Welded hob surround with 1.5mm 304 stainless steel bull nose
- Splashback and side panels 1.2mm 304 stainless steel
- Front panels 0.9mm 304 stainless steel
- Stainless steel grease drawer
- Overlapping finish at front and rear of plate for easy clean
- Oven
- Fully welded and vitreous enamelled oven liner
- GN 2/1 capacity with 4 position racking
- Heavy-duty easy remove heavy wire chrome rack supports
- Cast iron even heat oven sole plate
- 6.5kW heating elements
- Drop down door
- 0.9mm 304 stainless steel door outer
- 1.0mm vitreous enamelled door inner
- High density fibreglass insulated
- Supplied with two chrome wire oven racks
- Controls
- Large easy use control knobs - heat resistant reinforced
- Easy view control settings on knobs
- Griddle
- Separate left and right side heat zones
- Two 50-300°C thermostats
- Indicator lights for power and heating
- Over-temperature safety cut-outs
- Oven
- Separate temperature and top heat power regulation controls
- 50-320°C thermostatic control
- Lo-Hi top heat control
- Indicator lights for power and heating
- Cleaning and Servicing
- All models with easy clean stainless steel external finish
- Plate is finished front and rear with overlap construction to remove cleaning traps
- Removable oven racking and sole plate
- Easy clean vitreous enamel oven and door inner
- Access to all parts from front of unit
Specifications
- Griddle: 6 x 2kw stainless steel sheathed heating elements clad to pan base
- Oven
- 4.5kW bottom heat element
- 2.0kW top heat element
- Electrical requirements
- 18.5kW
- 400-415Vac, 50/60Hz, 3P+N+E
- Phase loading: L1 26A / L2 26A / L3 26A
- Cooking surface: 892mm x 530mm, 4728cm2
- Dimensions
- Width 900mm
- Depth 812mm
- Height 915mm
- Incl. splashback 1085mm
- Nett weight: 153kg
